ECU headers here. For misc smaller connectors see OEM-harness-connectors

24 pin

30 pin

60 pin superseal

64 pin

72 pin

80 pin

88 pin

104 pin Ford

104 pin Honda OBD2a OBD2b

112 pin

121 pin

122 pin

125 pin

132 pin

134 pin

154 pin

Do you know part numbers for any other OEM connectors? Please let us know!

Here are some OEM connector part numbers. Bosch & Siemens, German and Japanese, Mazda Toyota BMW Volkswagen:

18 pin

TE 1-1488533-6 2203663-6

harley 72664-12

24 pin

Popular aftermarket connector HCCPHPE24 from APTIV (FORMERLY DELPHI FCI)

Benelli TNT 1130 Walbro & Athena ECU (all model years)

Color: Black Key: A Part: HCCPHPE24BKA90F

Color: Grey Key: B Part: HCCPHPE24GYB90F

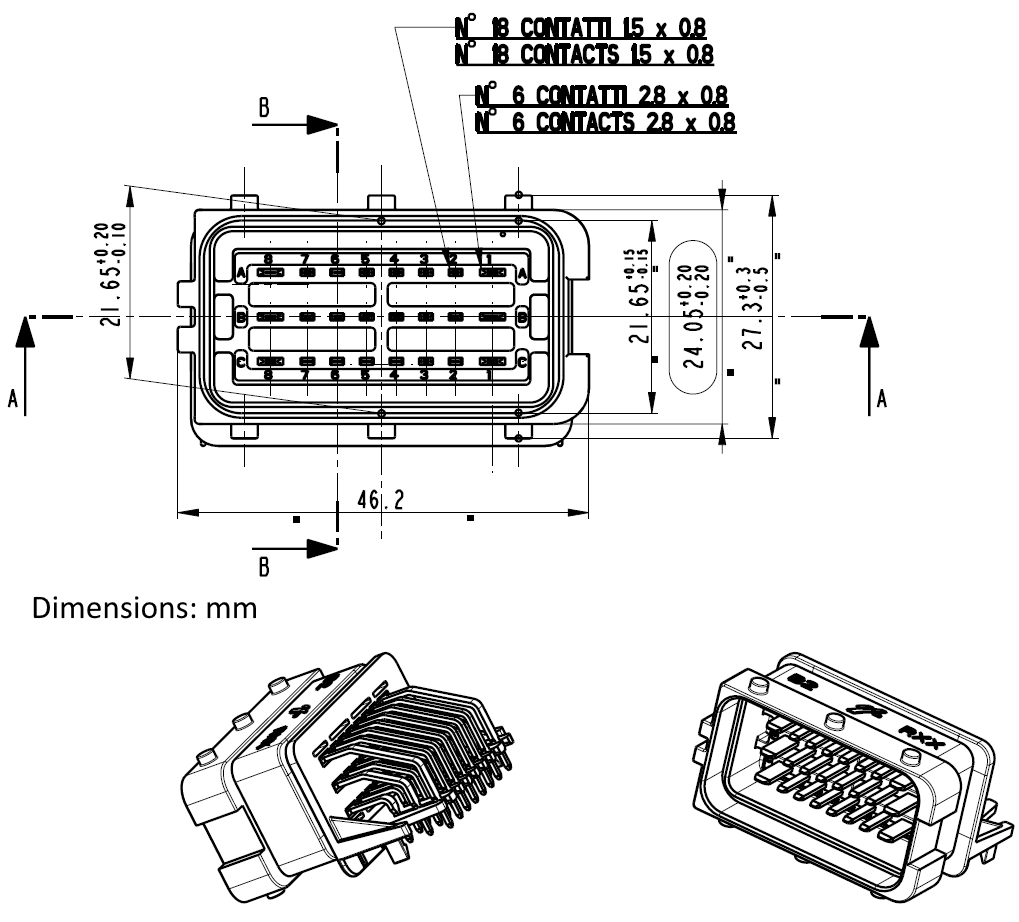

24 Pin connector

Speeduino - ECU Connectors

30 pin

TE 172491-1

18+12

ADM 22RE

32 pin

MEFI 1/2/3/4, some 6.0 Ford, EMS4

Activ Micro Pack 100w

Aptiv 12129231

12084912 terminal

34 pin

Superseal 6437288-1 and 6437288-2 male

female 1437290-7 Haltech 2500

TE 6437288-1 TE 6437288-2

Suzuki GSXR1300 Hayabusa ECU (99'-07')

Yamaha YZF-R1 2009-2011 ECU

Many aftermarket ECUs

35 pin

TE 825213-1

Volkswagen 0 261 200 220 0 261 200 862

BMW and Citroen/Peugeot

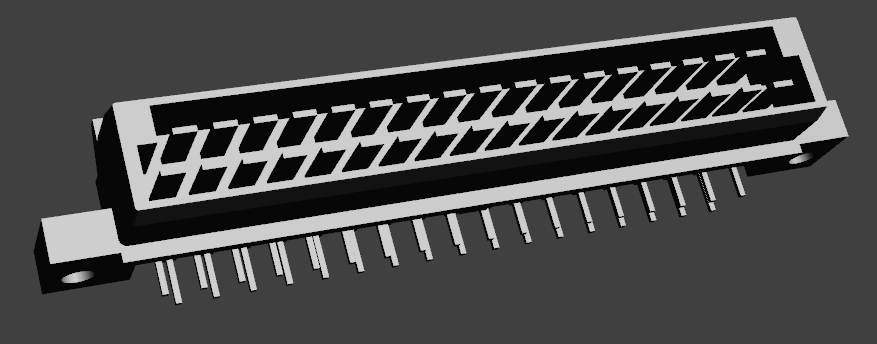

35 Pin connector

38 pin

Chrysler Next Generation Controller NGC

Female wire side

INDEX A 9-1326726-8

INDEX B 9-1326727-8

INDEX C 9-1326728-8

INDEX D 9-1326729-8

PCB side unavailable Mates to 05087006AB 05087007AB 05087008AA 05087009AA

42 pin two piece

26+16

TE 175446-1

42 pin three piece

172489-7

TE 172489-7

10+18+14

Toyota Camry, early 22R(T)E and 4AGE

See also Pulse Lock Connector Product Specification

48 pin

TE 174917-6 Escort GT, Ford Festiva, Miata NA6 manual

The larger plugs are the same as on the 64 pin.

52 pin

TE 172319-1

52 pin ECU connector ONLY breakout PCB toyota mitsubishi galant eclipse

52 pin 52 ECU connector - Toyota Mitsubishi Galant Eclipse DSM

10+18+24 18 pin housing 172316-7 10 pin housing 172315-7 contacts 170353-1

Toyota early 3SGE, 7MGTE and 4AGZE

Galant VR4, Eclipse 1G

13B ETC says

1991-1992 Dodge Stealth (SOHC Engine)
1990-1994 Eagle Talon (All)
1989 Ford Probe (F2T Engine)
1986-1989 Mazda 323 (All)
1986-1989 Mazda 626 (FE Turbo and F2T Engines)
1986-1988 Mazda RX7 (Except for some European or JDM models)
1988-1989 Mazda MX6 (F2T Engine)
1991-1994 Mercury Capri (B6T Turbo Engine)
1990-1994 Mitsubishi Eclipse (All)
1988-1992 Mitsubishi Galant (All)
1991-1992 Mitsubishi Galant VR4 (4G63 Engine)
1990-1994 Plymouth Laser (All)
1988-1989 Toyota Celica All-Trac (3SGTE Engine)
1983-1986 Toyota Celica Supra (All)
1988-1989 Toyota MR2 (4AGZE Engine)
1983-1986 Toyota Supra (5MGE Engine)
1986.5 - 1990 Toyota Supra (7MGE & 7MGTE Engines)
1989-1994 Suzuki Swift (GTI Engine)

54 pin

175448-6

26+16+12

last 22RE, 4AGE, 4/7AFE

55 pin

TE 963063-1

TE 963063-2

55 pin connector 963063-1 963063-2 - Forum

ECU connector for 1990-1995 Porsche 911

ECU connector for 1987-1988 Porsche 944 S

ECU connector for 1992-1995 Hyundai Scoupe

ECU connector for 1987-1992 BMW

harness side - 292096-1 harness side - 963532 terminals 144431-3 and 144431-1

some Audi around 1990

Citroen Berlingo m49, Citroen Xara

Lada Samara

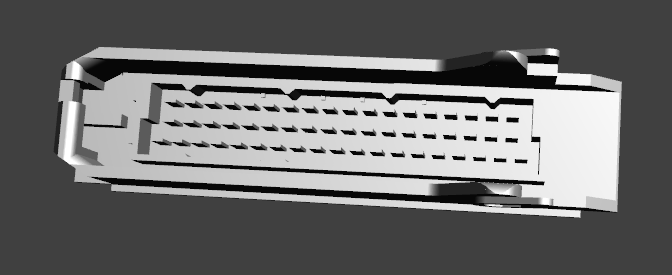

55 pin connector

For sale @ eBay breakout board Store

2 row 55 pin

Sagem/Renault

TE 828763-1

Female side 85193-2 TE 85193-2

56 pin

Aptiv Delphi 12020756

GM cars in 80s late ’80s Jeeps

60 pin

Ford todo :)

Terminals are E7EB-14488-GA (18 ga) and E7EB-14488-NA (14 ga)

60 pin superseal

26 + 34

terminal 1447221

TE 6437288-3 Haltech 2500

TE 6437288-5 upside down

26 pin plug 3-1437290-7 Haltech 2500

26 pin plug 1473416

Motec Haltech DTAfast

See Todo: [26 pin] ToDo: add reference See 34 pin

Suzuki Hayabusa 99-07 Gen I GSX1300R

2006 Yamaha R6

64 pin Nissan center lock

Center bolt

TE 174836-5

64 pin ECU connector nissan breakout

90-94

Wiring Specialties says

Silvia S15 SR20DET
Silvia S14 SR20DET Kouki & Silvia S14 SR20DE non-turbo
Silvia S13 SR20DET & SR20DE non-turbo
180SX Type X S13 SR20DET & non-type X SR20DET


Bluebird U14, U13 & SR-equipped U12
Pulsar N15 & N14
Primera P11 & P10
Primera Wagon W#P11
Avenir W11 & W10
Sunny B14 & B13
NX Coupe S13
March K11
Cube Z10
Terrano YD21

64 pin

TE 176122-6

TE 4-174518-7

Is this same as Mg643909?

-1, -6 and -7 are color options

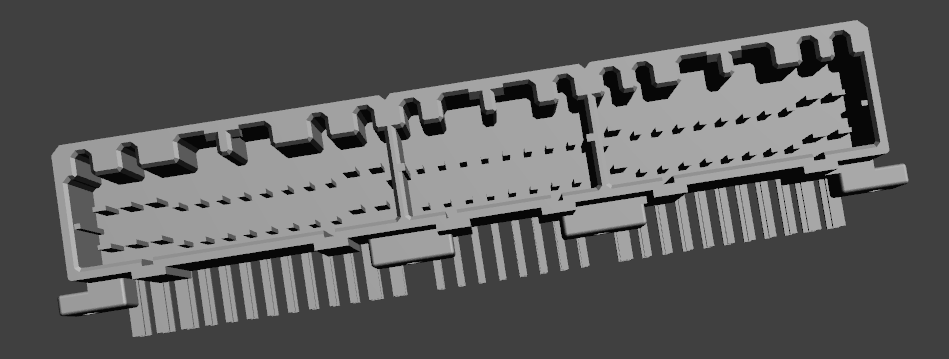

64 pin connector

64 pin 176122 ECU connector board - Forum

Mating plugs: 16p TE 175109-6

16p TE 174514-6

22p TE 175110-6

22p TE 174515-6

26p TE 175111-6

26p TE 174516-6

TE 174515-6

terminal TE 173634-1

terminal 173681

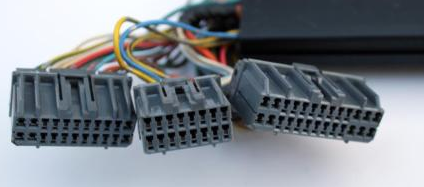

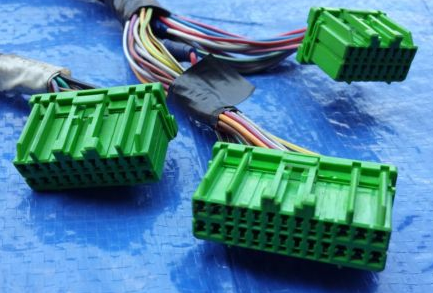

Grey connectors Green connectors

mitsubishi colt/mirage 1991-1995 year for 1.3, 1.6 and 1.8 engine

See also the 48 pin.

For sale @ eBay breakout board Store

4 row 64 pin

Used on 5SF, Bosch 7.3H4, 7.3.1

Mating harness connector 1-284272-5

284331-1 64+64 header

68 pin

68pin VW connector - Forum

Volkswagen 0 261 204 281/282 1997 Jetta

0 261 200 497/498

TE 963356-1

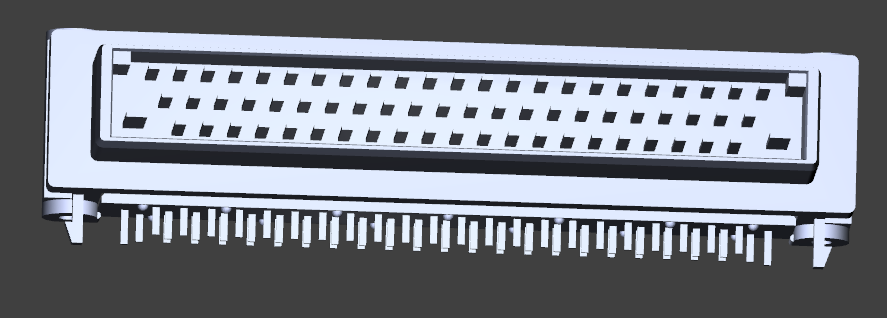

68 pin connector

TE 966595-1

VW Jetta, Passat

See http://faculty.ccp.edu/faculty/dreed/Campingart/jettatech/techset/index.htm

72 pin

31+24+17=72

TE 353830-5 octopart

TE 1123038-2 octopart

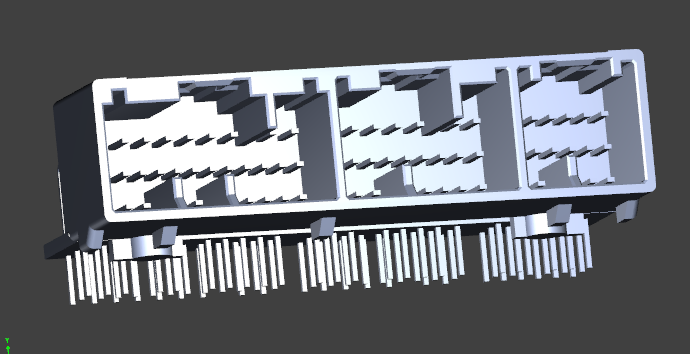

72 pin connector

See Miata 2001 - 2005

pins 316836? pins 316838

73 pin

black 313872014 GM e38

76 pin

TE 3-178780-6 178780-6 AMP maybe also 174915-6

Vehicle:Subaru SVX 1995

Vehicle:Subaru Impreza 1991-1996

26 pins (10 hi-current + 16 low-current) 174516-6

16 pins (all low current) 174514-6

12 pins (all low current) 174913-1

22 pins (6 hi-current + 16 low-current) 174515-6

And terminals 173716-1 or 173716-2 and 173630-1 or 173630-2

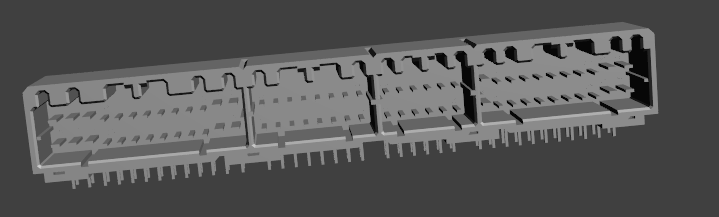

76 Pin Connector

76 pin center lock

See also 64 pin nissan center lock

TE 5-174385-5

Nissan 1992 Skyline R32 GT-S 4 RB20DET

80 pin

LS1 LS6

52+28

TE 8-1393476-0

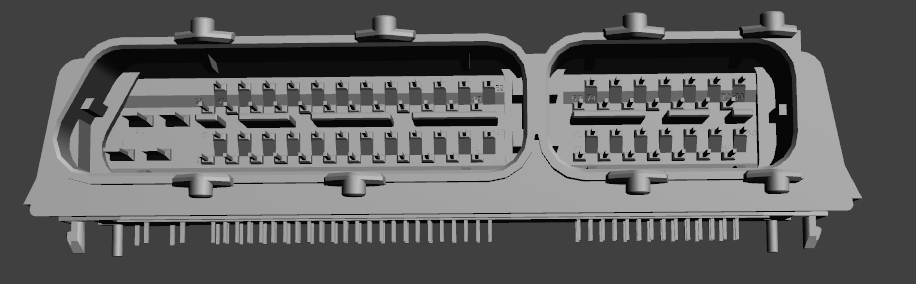

80 Pin Connector

Audi VW Jetta Golf VR6 Turbo

1997 1998 Audi 4D0 907 551 A

Passat B6 TCU uses 52 pin portion

80 pin GM

grey 313874018 GM e38

80 pin molex

48+32 Nissan

A lot of Russian cars М74 11186-1411020-22

502225-0801

newer 80 pin

8-1393476-0 Lamborghini Gallardo, Murcielago

81 pin

unknown part number used by Chinese vehicles, google for DJ7811-1-3.5-10

81 pin connector - Forum

88 pin

TE 185785-1

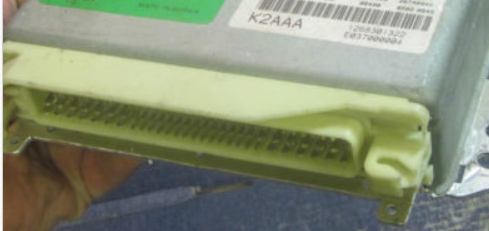

88 Pin Connector in ECU

98-01 KIA SEPHIA

90 pin

FCI connetor

CKKB90-1-A

Siemens AS90-1 211PC902S0008, Chevrolet SPARK 1.2 5WY5983B/C/D 24518146

Pins are Delphi sicma

93 pin

x

MX7-93PL-C4

35+28+30 Subaru 22611AE670 SUBARU IMPREZA 2000-2003 ENGINE CONTROL MODULE UNIT ECU 22611AF634

1998 to 2001 SUBARU

mitsubishi evo9

94 pin

31+24+17+22=94

TE 1123794-2 TE 1473181-1

maybe not used by OEM but relayed to 72 pin NB2

22 position for PN# 353028-1 17 position for PN# 353027-1 24 position for PN# 353029-1 31 position for PN# 353031-1

96 pin

Dodge Hemi

2018 Durango grey + tan

Chrysler

header

brown tyco 2035160-2

13784962 grey Micro HVT

13784963 brown

13784964 green

harness side 1924939-1 3-1924939-5

1924941-2

Maybe relevant maybe not? 13964572 15494614 13627884 13627887 13627886

terminal 1924879-1 thin wires

1924880-1 1 AWG wires

100 pin

1-178203-6

1-5178203-6

34-22-16-28 pins

Jzx30/Jzx90/Jzx100

Toyota 1MZ-FE 3RZ-FE 5VZ

1996 Toyota Avalon Engine Computer Ecu 89661-07050

104 pin Ford

ToDo: add reference

104 pin

TE 179686-6

Honda Accord 96-2002

Honda Insight 99-2006

Honda OBD2a OBD2b connector

OBD2B • 2000-2001 Acura Integra • 1999-2000 Honda Civic • 1998-2002 Honda Accord

OBD2A • 1996-1999 Acura Integra • 1996-1998 Honda Civic • 1996-2001 Honda Prelude • 1996-1997 Honda Accord

Vault-Of-Honda-OEM

104 pin nissan

5178079-1

JA18C50 1995 Nissan Altima

105 pin

31+24+gap+28+22

3-353016-1

subaru 6 cylinder BE/BH

a subset of 122 pin connector

108 pin

TE 1318613-1

Honda K Series relayed to 72 pin NB2 but only two plugs are shared

112 pin

Molex 64333-0100

32+48+32

32 pin female = 643193211 48 pin female = 643203319

Molex 643330100

2010 Nissan Versa

112 pin 64+48

F01R 20D 067 2050900-1

112 pin Mitsu 64+48

Lancer Evolution X, Outlander

112 pin 56+56

56+56 Suzuki ALTO Jimny Swift

Suzuki Vitara 2015 33910-61M00

SX4 2010 33920-55L40

POLARIS 2011-2019 BRUTUS RZR RANGER 1000 850 570 CREW

2284486488

KTM 125 DUKE 2013-2016

Fiat 500 1.4T

me17.3.0

1 928 405 216 Bosch

harness side 1928405160 1928405161

119 pin

35+26+30+28

MX7-119PL

2014 Mitsubishi Mirage

120 pin

TE 1-178405-6

Toyota Supra ECU connector 120 pin

harness side 178411-6

harness side 178409-6

A80 Gen 4 Supra

JZ

120 pin Mazda

60 + 60

harness side 7283-9908-10 grey 7283-4988

Miata NC, 2010 Mazda 3

121 pin

TE 1241434-1

TE 368255-2

Breakout 121pin 368255-2 Connector

TE 1473244-1

TE 1473252-1

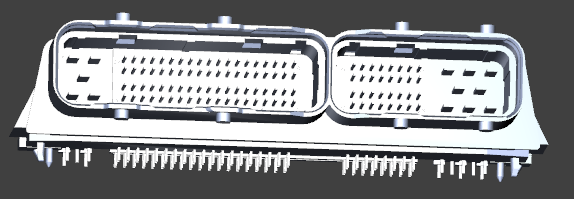

121 Pin Connector

121 pin connector 368255-2 (same as 1241434-1) - Forum

81 female plug 1355171-1/368389-1/368382-1/1J0906385C

40 female plug 0-1355172-1/038906379B

Currently used by Nissan, Hyundai and Kia. Also Audi, VW and Mini Cooper

2005 Altima 2.5

2003 VW Passat

121 pin main page

122 pin

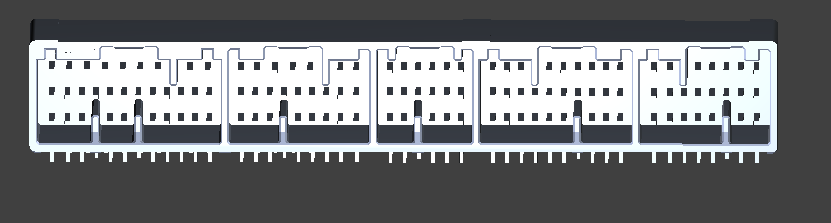

122 Pin Connector

122 pin ECU connector header breakout board Mazda Toyota Subaru

TE 8-5353015-1

31+24+17+28+22

Mazda RX-8

see also 105 pin variation

maybe the most common Aristo 2JZ ECU connector? 1999 TOYOTA CAMRY 3.0L V6 89666-20041

Subaru Legacy 2002

125 pin

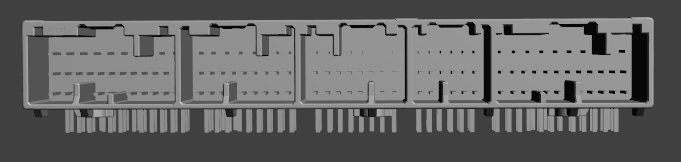

125 Pin Connector

125 pin ECU connector Honda harness breakout PCB board

TE 1318612-1

Honda D17 Honda K

31+24+22+17+31=125

1318682-6 = ECU A 31

353029-1 = ECU B 24

353028-1 = ECU C 22

353027-1 = ECU D 17

353826-1 = ECU E 31

Terminal 175180-1 175180-2 173681-1 173681-2 175062-1 175062-2

See Vault of Honda OEM

126 4 row

TE 1-353222-6

1123338-1 35 pin plug

2000s Mazda 6 ?

06-07 Subaru ?

128/145 pin

Mercedes M111

x

See Vault of Mercedes OEM connectors

Bosch 1264486241 1 264 486 241

A=8 B=4 C=40 D=24 E=48 F=21

8+4+40+24+48+21=145

In reality

8+4+23+24+48+21=128

A0235459732 A0225452732 A0275457932

130 pin

2174100-1 2174100-2 Honda Acura 80+50

132 pin

TE 1717139-1

44+44+44

This appears to be used on many 08-14ish Honda and Acura ECUs. The harness connectors are 3 different keyed 44 pin connectors. More info:

Connector A (White) 44 Position Plug Assembly (Female): 1717138-6 Connector A (White) 44 Position Wire Cover: 1827108-1

Connector B (Grey) 44 Position Plug Assembly (Female): 1717138-5 Connector B (Grey) 44 Position Wire Cover: 1827109-1

Connector C (Green) 44 Position Plug Assembly (Female): 1717138-4 Connector C (Green) 44 Position Wire Cover: 1674419-2

Cavity Plug: 1612108-4 Wire Cover V Type: 1746089-1 132 Position Cap Assembly (Male) (Part of the ECM assembly): 1717139-1 44 Position Wire Cover Type-IV: 1903287-1

134 pin

TE 7-967288-1

Also known as 965497-1

9+24+52+40+9

Female 9 1-968886-1 Mercedes 220 545 9428

Female 9 965487

Female 9 replica

Female 24 replica

Female 40 replica

Female 52 2209477-1 967287-1 replica

Female 9 1-965487-1

See Vault-BMW-Info

bmw e38 e46 e65 e66

02-03 Hyundai Santa

2002-2005 Land Rover

135 pin

Sibling of 167 pin

TE 1-1376430-0

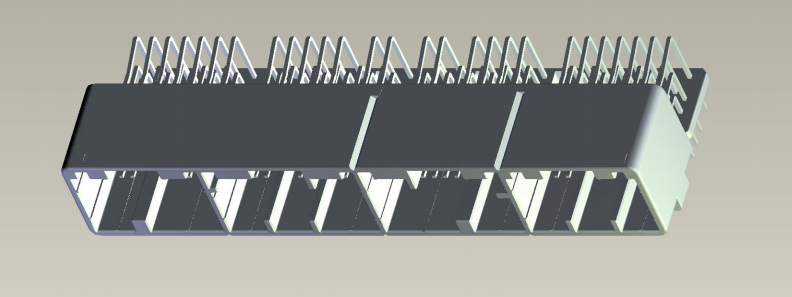

135 Pin Connector

Honda 2003-2008 02 through 08 corolla/matrix/vibe

harness side connectors:

E 3 Engine Control Module Toyota 90980-12144

E 4 Engine Control Module Toyota 90980-12145

E 5 Engine Control Module Toyota 90980-12529

E 6 Engine Control Module Toyota 90980-12525

136 pin

64+72, 5 row, feels so CMC

Kawasaki Ninja ZX4RR 2023

145 pin

Mercedes 145 pin

M111

8+4+40+24+48+21

part number?

individual plugs 1685450828 2205459428

146 pin

N54 Bmw MSD/MSV 80/81 ?

152 pin

Chrysler NGC ECU connector

38 pin plugs:

TE 9-1326726-8

TE 9-1326727-8

TE 9-1326728-8

TE 9-1326729-8

154 pin

60+94

60 pin female 1-1355114-1

EDC16 EDC17

09 10 11 12 HYUNDAI ELANTRA 2.0L

2011 2012 Kia Sorento 2.4L 39133-2G120 K17 019

TE 284617-1

TE 936524-2

TE 936762-2

TE 936762-2

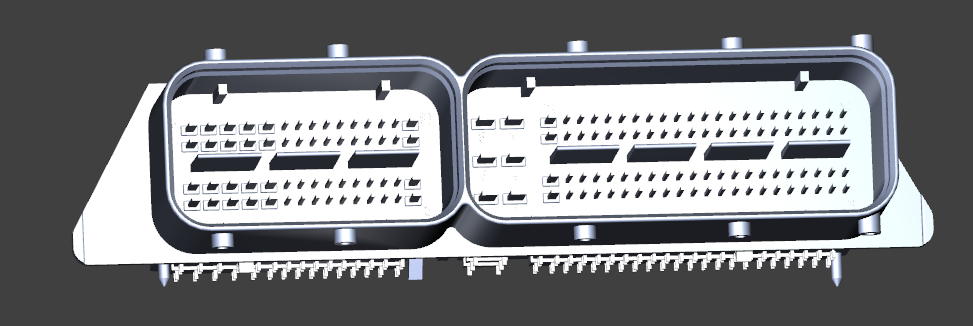

154 Pin Connector

Breakout 154pin 284617-1 Connector

154 pin connector 284617-1 - Forum

96+58

1 264 486 513

Honda Ford Mercedes

me9.7

Aptiv Delphi 13830808

154 pin Molex

48 + 53 + 53

Molex 0347630001

167

Sibling of 135 pin

4 row

Toyota Vios NCP150 Engine 2NR-FBE

Toyota Tacoma 2015-2018 HILUX

1612435-4 167 without gap

167 with gap

Similar to above but with a gap

2005 Scion TC

1318813-7 167 with gap

170

TE 1717313-8

110+60

Toyota Camry 2008 Yaris 2008

Breakout Available

186 pin

Toyota/Lexus 2013

186 pin small

114+72

Subaru 2018 2019 BRZ

GR86

Molex 5601381861 560138-1861

190 pin

Ford gen1 11-14

three sections

196 pin

Delphi 35043766

1928405455 105 plug

91 pin plug female Bosch 1928405452

91 pin plug TE 1-2208709-1

Bosch 91 & 105

2011 2012 2013 Kia Optima

HYUNDAI SONATA 2011 2012 2013 2014 39111-2G667 2.4L ECM PCM OEM

Maybe Mercedes M157 1779007904

https://rusefi.com/#shop

196 pin

1034486000 variation (different PCB footprint - minor difference from above)

196 pin

A2C93685800 variation (third PCB footprint - minor difference from above)

198 pin

103+95

Ford 2014-2017, Volvo V90 T5 2.0T

https://rusefi.com/#shop

200 pin

TE 6473649-1

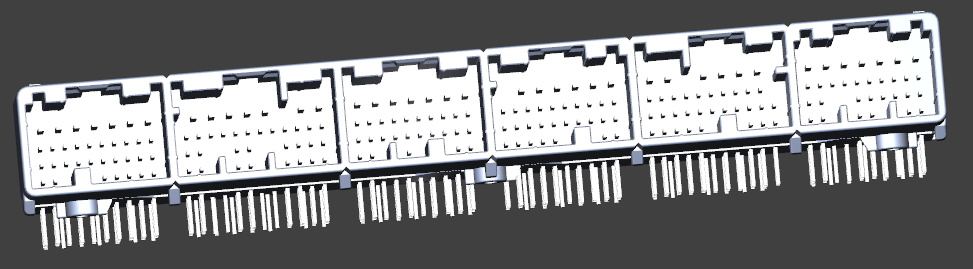

200 Pin Connector

31+35+33+32+35+34

Toyota

306 pin

gen3 17+

three sections

broken link
