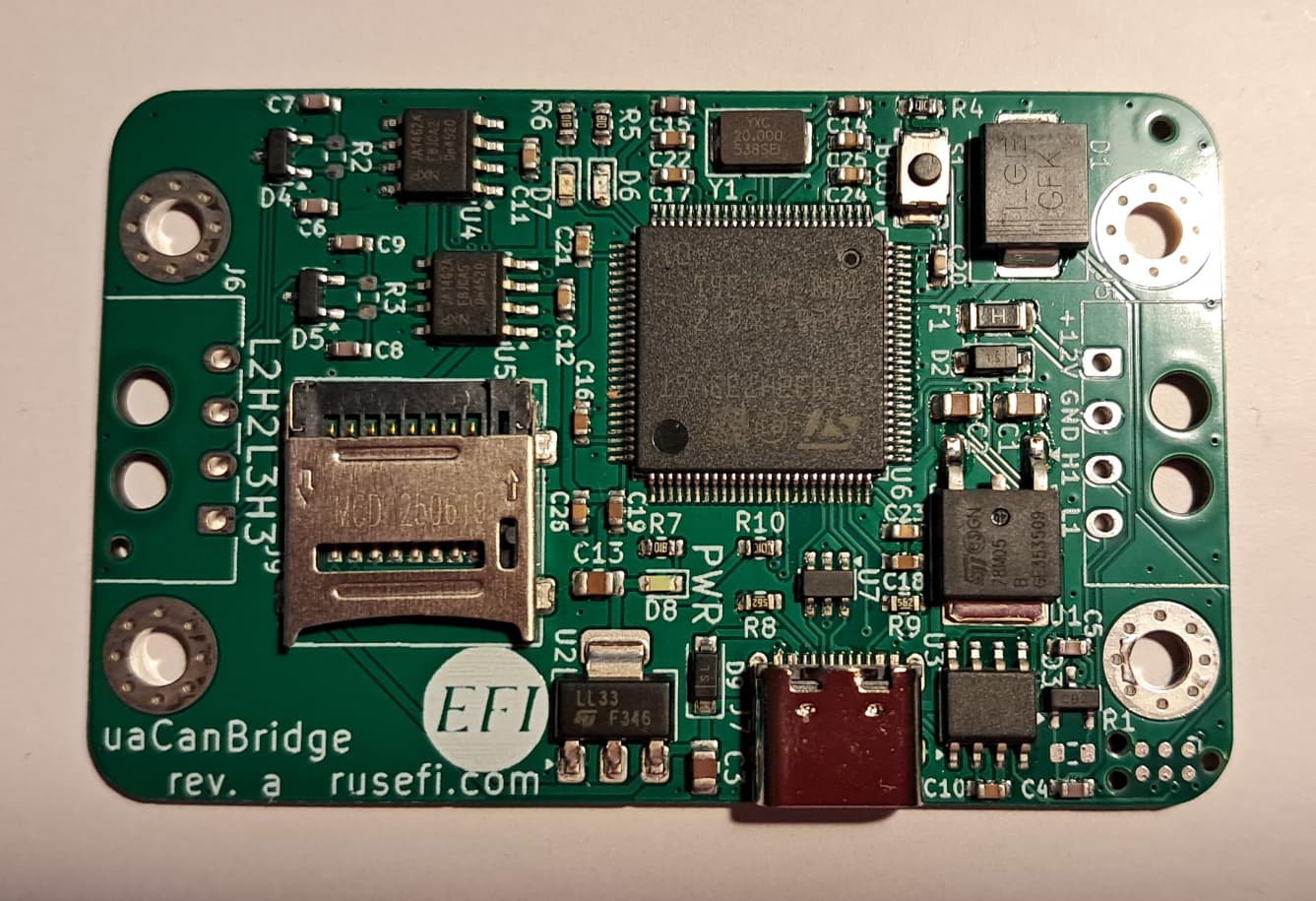

uaCanBridge¶

Three-channel CAN-FD gateway programmable using Lua scripting.

💲rusEFI store💲

• x3 CAN bus
• +12v power
• USB-C for configuration
• MicroSD card slot
• Optional molex 43650-0400 connectors

Use-cases¶

• Shift CAN ID and/or change baud rate
• Man-in-the middle tool

Software

HOWTO¶

This old video is still very relevant

Use the rusEFI Console 'Lua' tab for Lua and the TunerStudio 'CAN' dialog to adjust baud rates. See Lua Scripting for API details; links to examples can be found at the bottom of the page.

open source firmware

Wiring¶

PCB header 43650-0400

harness connector 43645-0410

terminals 43030-0040
