mega144¶

Available at 💲rusEFI store💲

🔴 Community support ONLY 🔴

Firmware snapshot

A way to convert legacy Arduino hardware into rusEFI: mega2560 form factor board compatible with newer 3v MOSFETs

Uses SMT32F7, meaning extra Lua capacity.

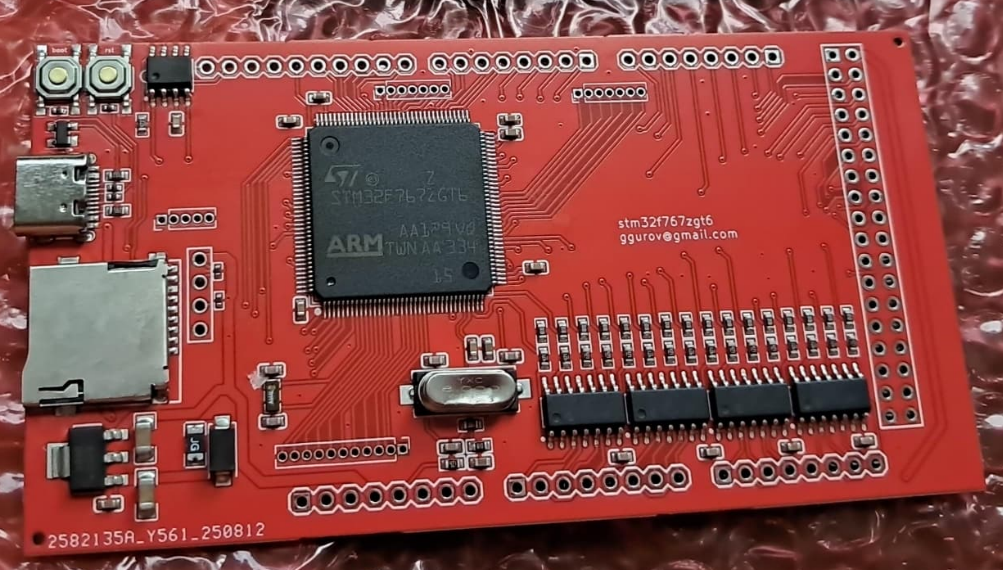

mega144 Board

https://github.com/rusefi/fw-custom-mega144-f7/

Superior sibling of mega100 for lqft100 version - extra performance and extra memory for extra Lua scripting.

MOSFETs¶

STP62NS04Z 🔴 not compatible https://www.st.com/resource/en/datasheet/stp62ns04z.pdf

FAQ¶

Q: Is it safe to connect a 0–5v Hall input directly?
A: Many stm32 input pins are 5v tolerant.

Q: International shipping costs more than one board?
A: A great reason to order multiple boards and split shipping with your friends! International shipping is annoying for us as well.
