2001 Mazda Miata

72 pin Connector

See also Mazda Miata 2001 ABS

For engine wiring see Mazda Miata 2002

Automatic Transmission

SB101 9090 SB131 9090 Aisin

03-70le A42DE

pos color desc type my color
A light green "1" selector blue
B pink/blue "2" selector seems to be +12 in wire in 2 white
C yellow/black "D" selector seems to be +12 in wire in Drive orange
D red/yellow "R" selector +12 in wire if in reverse green
E * * *
F "N/P" selector
H * * *
J * * *
K O/D off switch
L O/D off indicator
M * * *
N * * *
O Communication with ECU
Q * * *
R Lt Green/Red +5v volts from ECU red
T cruise control module
V/U Green/Black TPS Sensor analog signal green
W red input speed sensor red
Z white input speed sensor white
AA * * *
AC Black/White Tachometer (?) white
AD * * *
AE yellow output speed sensor blue
AF orange output speed sensor orange
AG Green/Orange speedometer (?) green
AH * * *
AI * * *
AJ * * *
AL Communication with ECU
AN Blue shift solenoid B 18 Ohm blue
AO Blue/Orange TCC solenoid 18 Ohm orange
AP BLK/BLU GND black
AQ Yellow/Green shift solenoid A 18 Ohm green
AR Blue/Red +12 all times red
AS Black/Yellow +12 running red

R(AE,AF)==600 ohm

R(W,Z)==400 ohm

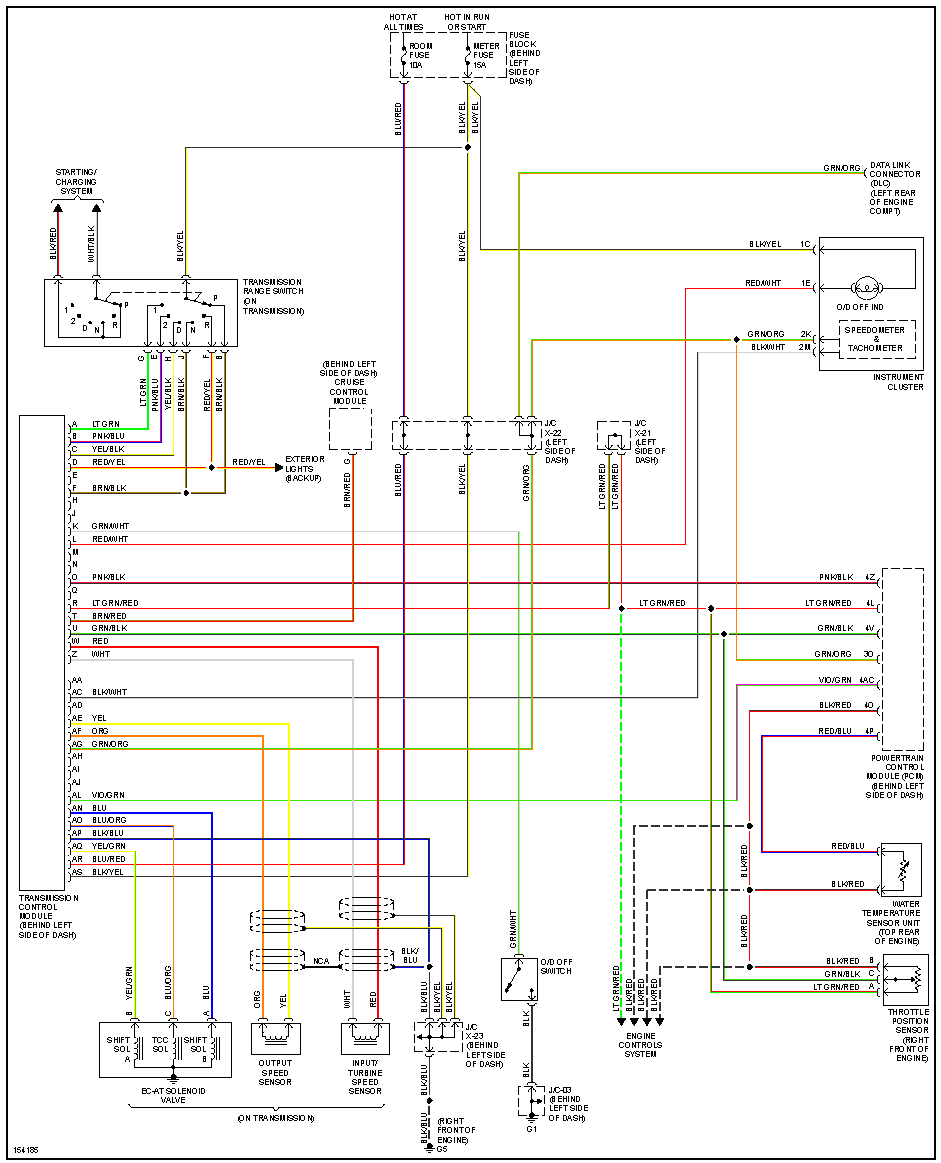

Wiring Diagram

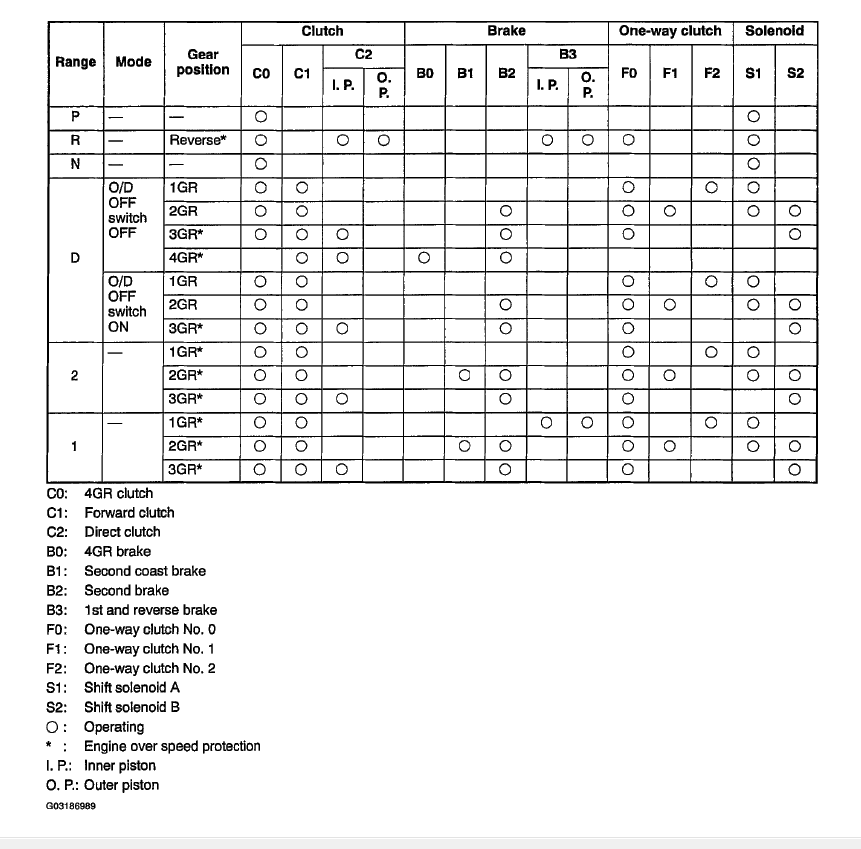

Gear diagram

Gear Diagram
