1996 Mazda Miata¶
1996 US 1.8

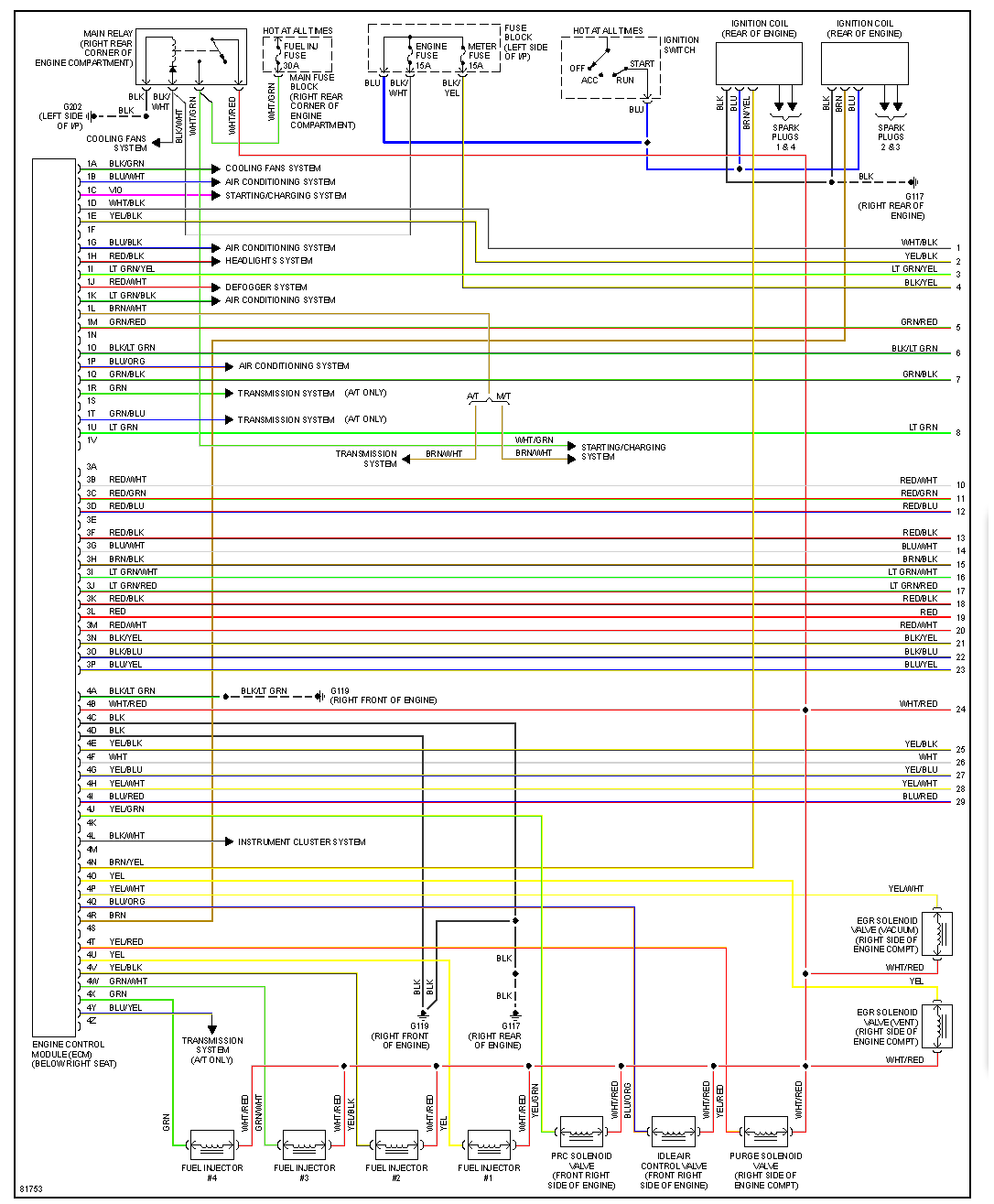

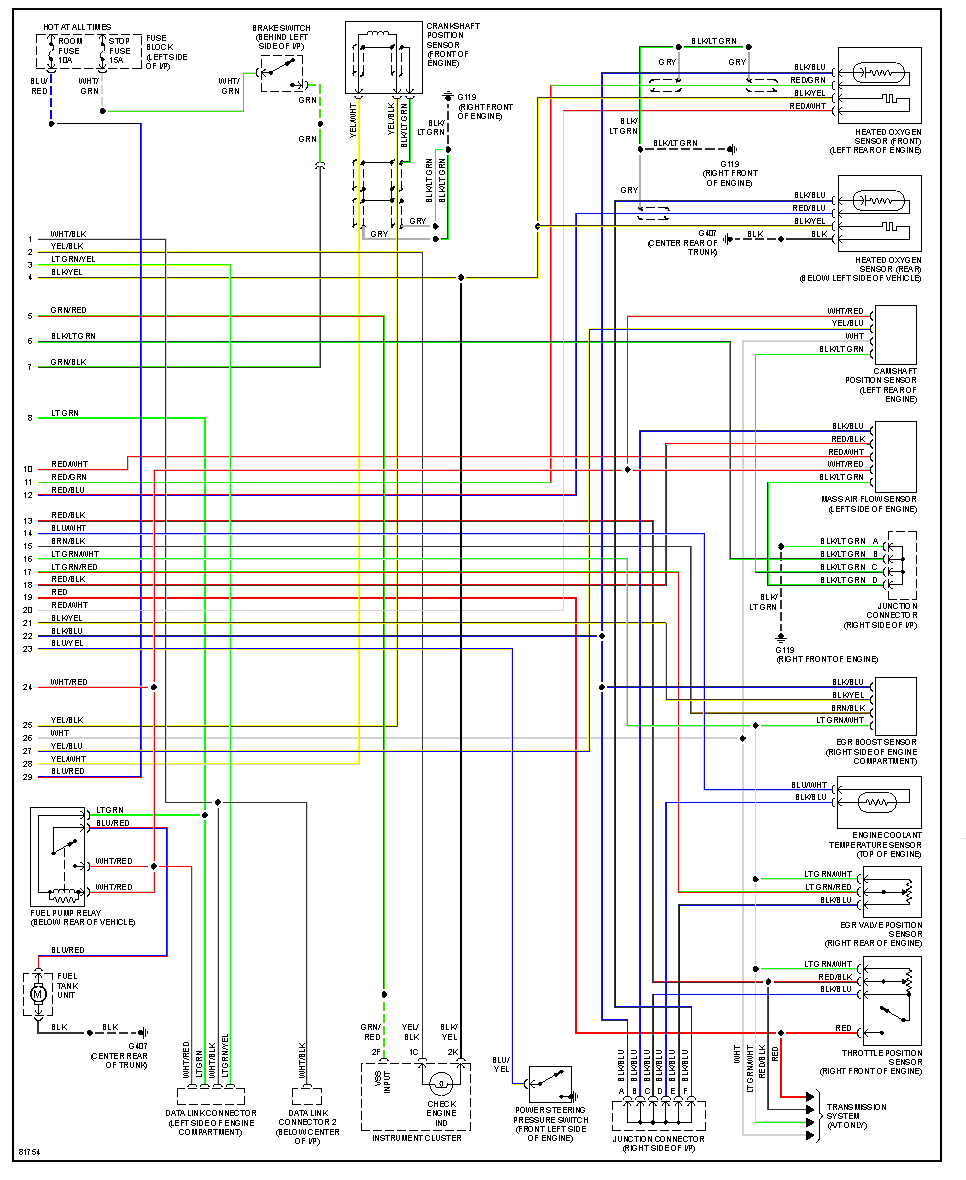

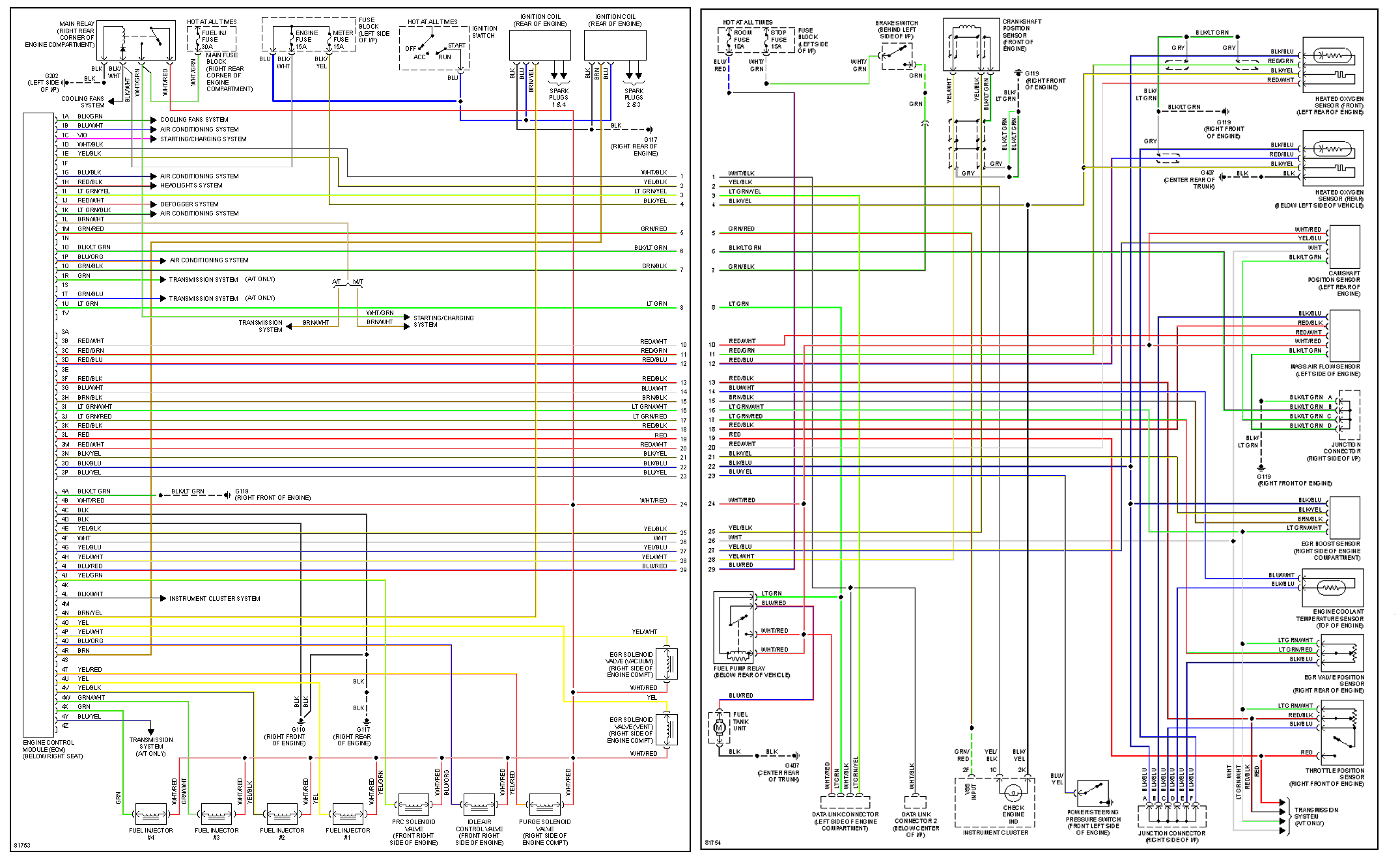

Plug 1¶
22 pin
| pos | b pos | color | desc | type |
|---|---|---|---|---|
| 1A | Radiator Fan1 | Output, low-side | ||
| 1B | Radiator Fan 2 | Output, low-side | ||
| 1C | ||||
| 1D | ||||
| 1E | ||||
| 1F | * | * | Not Used | * |
| 1G | ||||
| 1H | ||||
| 1I | ||||
| 1J | ||||
| 1K | ||||
| 1L | ||||
| 1M | ||||
| 1N | * | * | Not Used | * |
| 1O | Ground | |||
| 1P | ||||
| 1Q | ||||
| 1R | A/T only | |||
| 1S | * | * | Not Used | * |
| 1T | A/T only | |||
| 1U | Fuel pump, INJ06/PE4 | Output | ||
| 1V | * | * | Not Used | * |
Plug 2¶
12 pin (Plug on OEM ECU is not used)
| 2A | ||||
| 2B |
Plug 3¶
16 pin
| pos | b pos | color | desc | type |
|---|---|---|---|---|
| 3A | * | * | * | * |
| 3B | RED/WHT | MAF, INP1 | Input | |
| 3C | ||||
| 3D | ||||
| 3E | * | * | * | * |
| 3F | RED/BLK | TPS, INP3 | Input | |
| 3G | BLU/WHT | CLT, INP4, PC1 ADC11 | Input | |
| 3H | ||||
| 3I | TPS/MAF 5v power | Output +5 | ||
| 3J | ||||
| 3K | ||||
| 3L | ||||
| 3M | ||||
| 3N | ||||
| 3O | BLK/BLU | Ground | ||
| 3P |
Plug 4¶

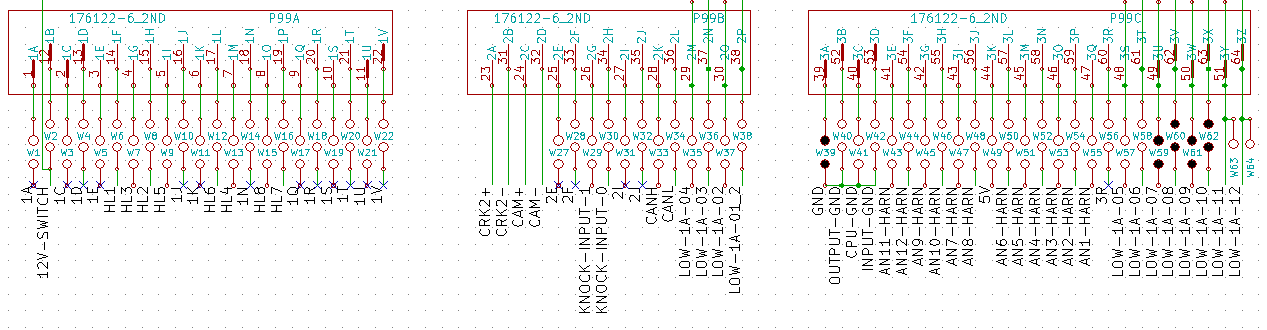

26 pin (corresponds to Frankenso Plug 3)
| pos | b pos | color | desc | type |
|---|---|---|---|---|
| 4A | Ground | |||
| 4B | WHT/RED | Power | +12v input | |
| 4C | ||||
| 4D | ||||
| 4E | YEL/BLK | Crankshaft Position Sensor | ||
| 4F | WHT | Cam Position Sensor | Input | |
| 4G | GRN | Cam Position Sensor, INP12 | Input | |
| 4H | YEL/WHT | Crankshaft Position Sensor | ||
| 4I | ||||
| 4J | ||||
| 4K | * | * | Not used | * |
| 4L | Instr Cluster | |||
| 4M | ||||
| 4N | GRN | Ignitor 1 & 4 | Output | |
| 4O | ||||
| 4P | ||||
| 4Q | BLU/ORG | Idle Air Control Valve, INJ07/PE5 | Output, low-side | |
| 4R | BRN | Ignitor 2 & 3 | Output | |
| 4S | * | * | Not Used | * |
| 4T | ||||
| 4U | WHT | Injector 1, INJ12/PB9 | Output, low-side | |
| 4V | YEL | Injector 2, PB8 | Output, low-sideutput | |
| 4W | Injector 3 | Output, low-side | ||
| 4X | Injector 4 | Output, low-side | ||
| 4Y | ||||
| 4Z |
