Hellen 64 Miata NA6 94¶
This development board is PnP for NA6 and 94-95 Miatas.
Hardware features¶
- knock detection module
- build-in WBO
- battery to keep real time clock running
- options port for additional I/O

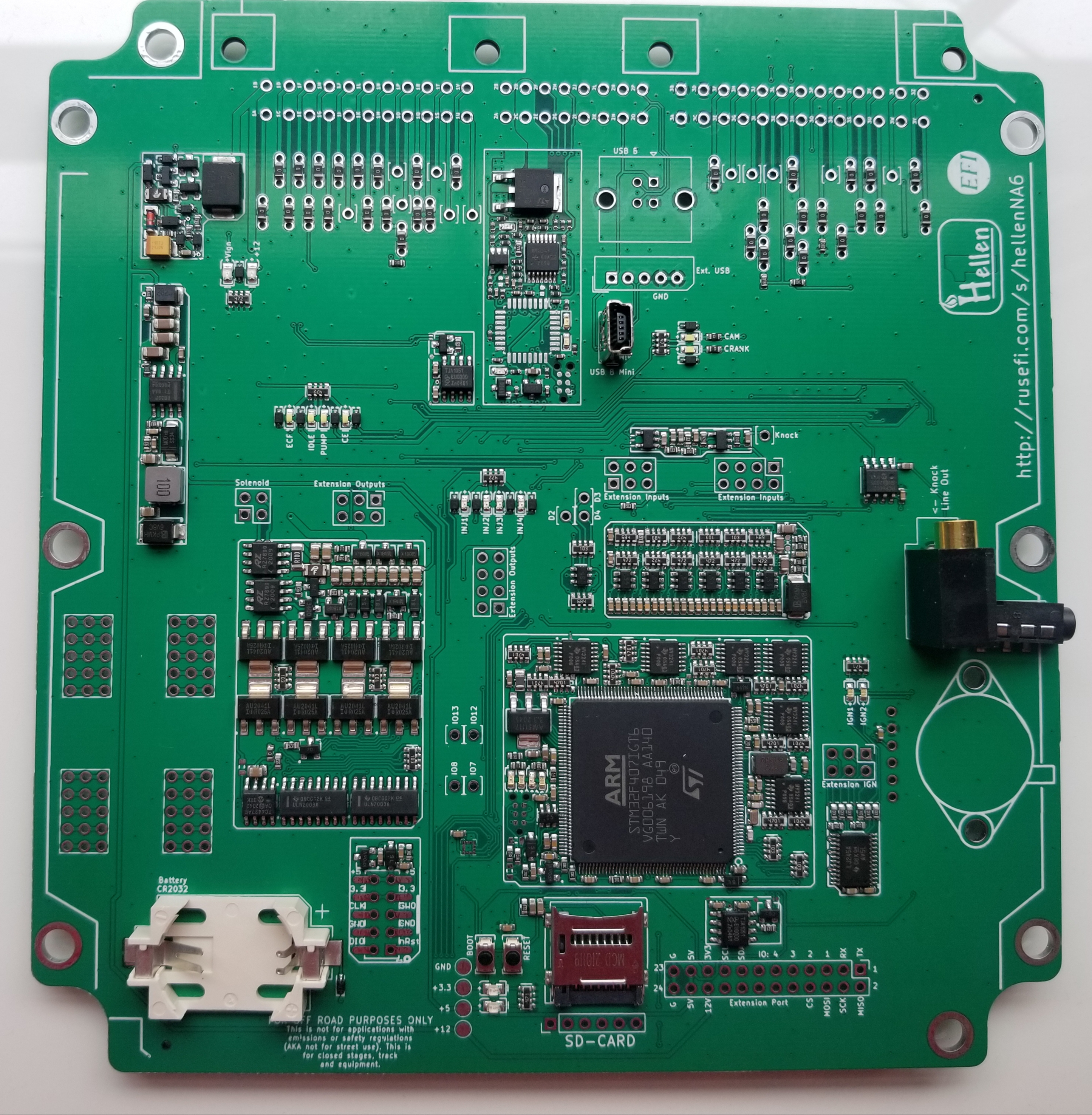

Rev A¶

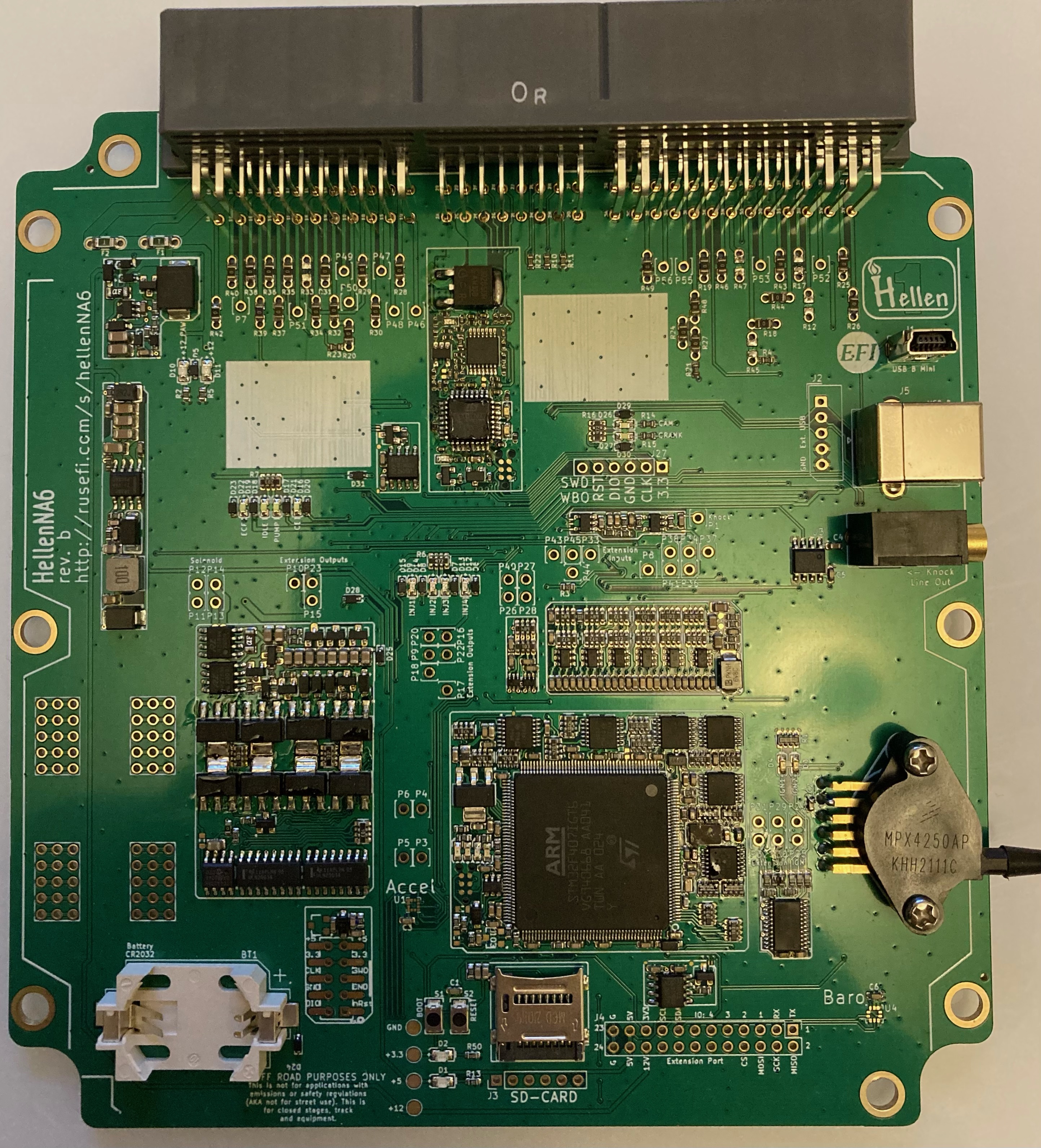

Rev B¶
Extension Pads (rev. b)¶
| Pin | Type | Comments |
|---|---|---|
| Outputs | ||
| P9 | PP | 1.5 A peak |
| P10 | PP | 1.5 A peak |
| P12 | Bridge driver A | 3 A peak |
| P11 | Bridge driver A | 3 A peak |
| P13 | Bridge driver B | 3 A peak |
| P14 | Bridge driver B | 3 A peak |
| P8 | Low side | 1.4 A |
| P15 | Low side | 1 A |
| P16 | Low side | 1 A |
| P17 | Low side (always hot) | 0.5 A |
| P18 | Low side | 0.5 A |
| P19 | Low side | 0.5 A |
| P20 | Low side | 0.5 A |
| P21 | Low side | 0.5 A |
| P22 | High side | 4 A |
| P23 | High side | 4 A |
| P24 | PP 5 V | 20 mA |
| P25 | PP 5 V | 20 mA |
| P29 | PP 5 V | 20 mA |
| P30 | PP 5 V | 20 mA |
| P31 | PP 5 V | 20 mA |
| P32 | PP 5 V | 20 mA |
| Inputs | ||
| P1 | Knock | |
| P26 | Discrete pull down | |
| P27 | Discrete pull down | |
| P28 | Discrete pull down | |
| P33 | Analog pull up | |
| P34 | Analog pull up | |
| P35 | Analog pull down | |
| P36 | Analog pull up | |
| P37 | Analog pull up | |
| P38 | Analog pull down | |
| P39 | Analog pull down | |
| P40 | Analog pull up | |
| P41 | Analog pull up | |
| P42 | Discrete pull up | |
| P43 | Discrete pull down | |
| P44 | Discrete pull up | |
| P45 | Discrete pull down | |
| MCU | ||
| P3 | GPIO | |
| P4 | GPIO | |
| P5 | GPIO | |
| P6 | GPIO | |
| J4 | SPI, UART, I2C, GPIO | See silkscreen and schematic for details |
Options Port (rev. b)¶
| Pin | Type | Comments |
|---|---|---|
| 2A | Ground | |
| 2B | +5v | |
| 2C | WBO Heater - | LSU 4.9 Pin 3 |
| 2D | +12v | LSU 4.9 Pin 4 |
| 2E | WBO R Trim | LSU 4.9 Pin 5 |
| 2F | WBO Ip | LSU 4.9 Pin 1 |
| 2G | WBO Vs/Ip | LSU 4.9 Pin 2 |
| 2H | WBO Vs | LSU 4.9 Pin 6 |
| 2I | VVT Output | |
| 2J | Boost Control Output | |
| 2K | Ground | |
| 2L | Digital Input | Flex Sensor |
| 2M | Pressure Sensor | |
| 2N | Temperature Sensor | |
| 2O | Ground | |
| 2P | Knock Sensor Input |

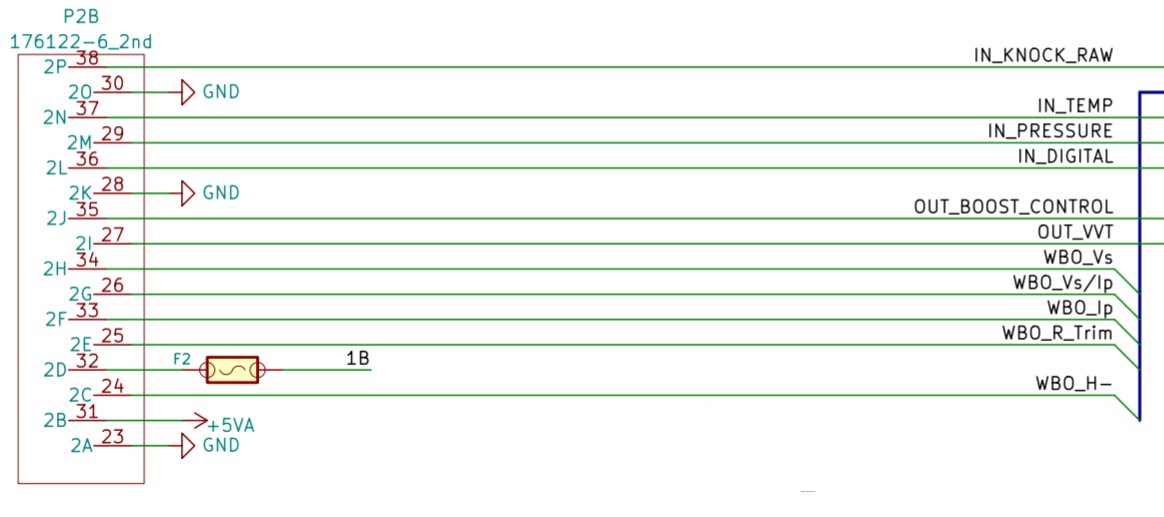

Options Port Schematic
Additional Hardware¶
LSU 4.9 Wideband Sensor Or Similar
