BMW M73 full PnP harness¶

See also rusEFI Quick Start.

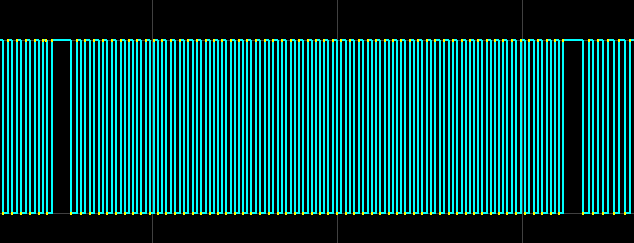

Expected VR shape: see the Trigger Configuration Guide.

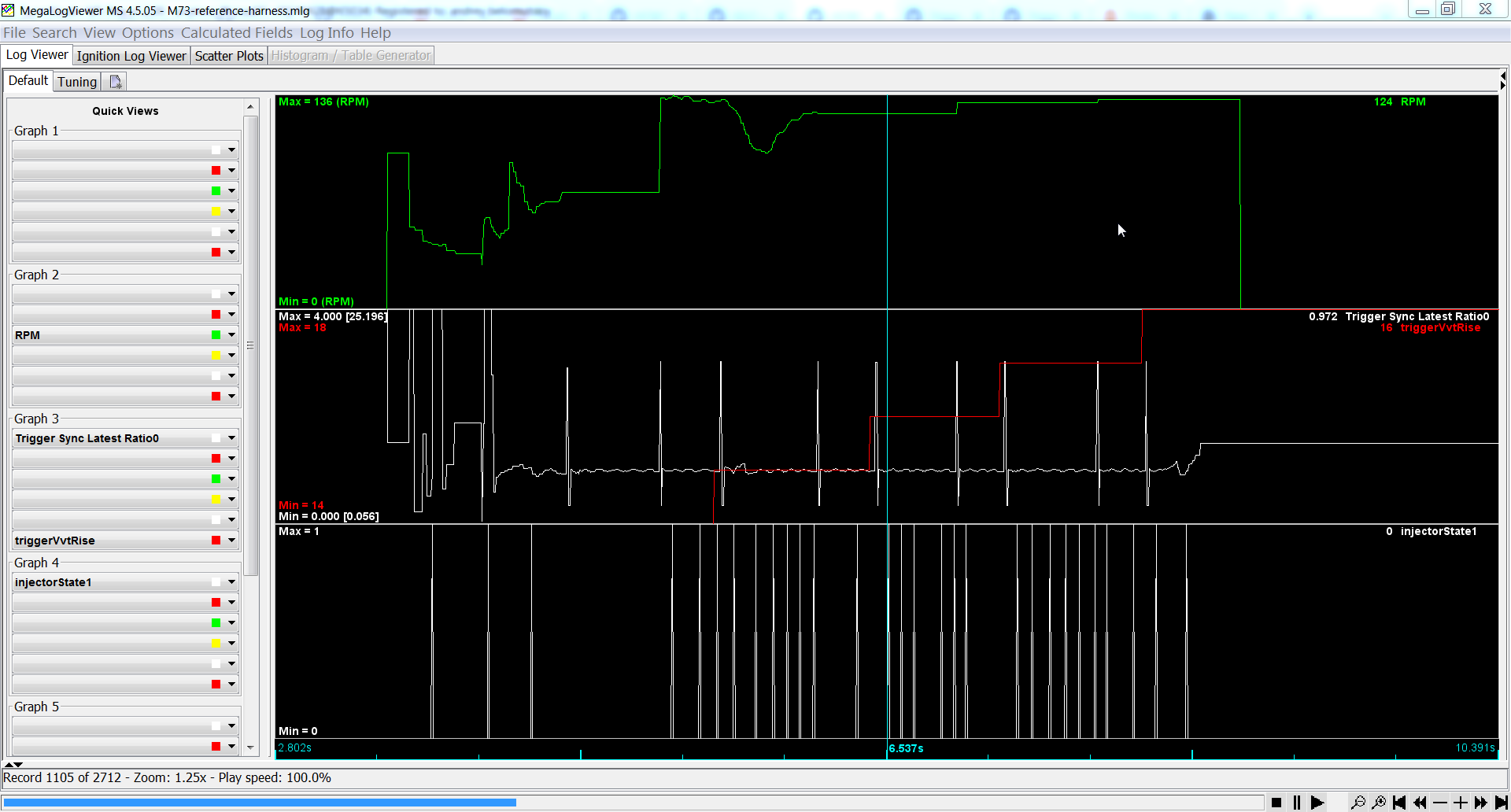

Reference cranking trigger decoding log

https://youtube.com/shorts/lppFagGm2OU

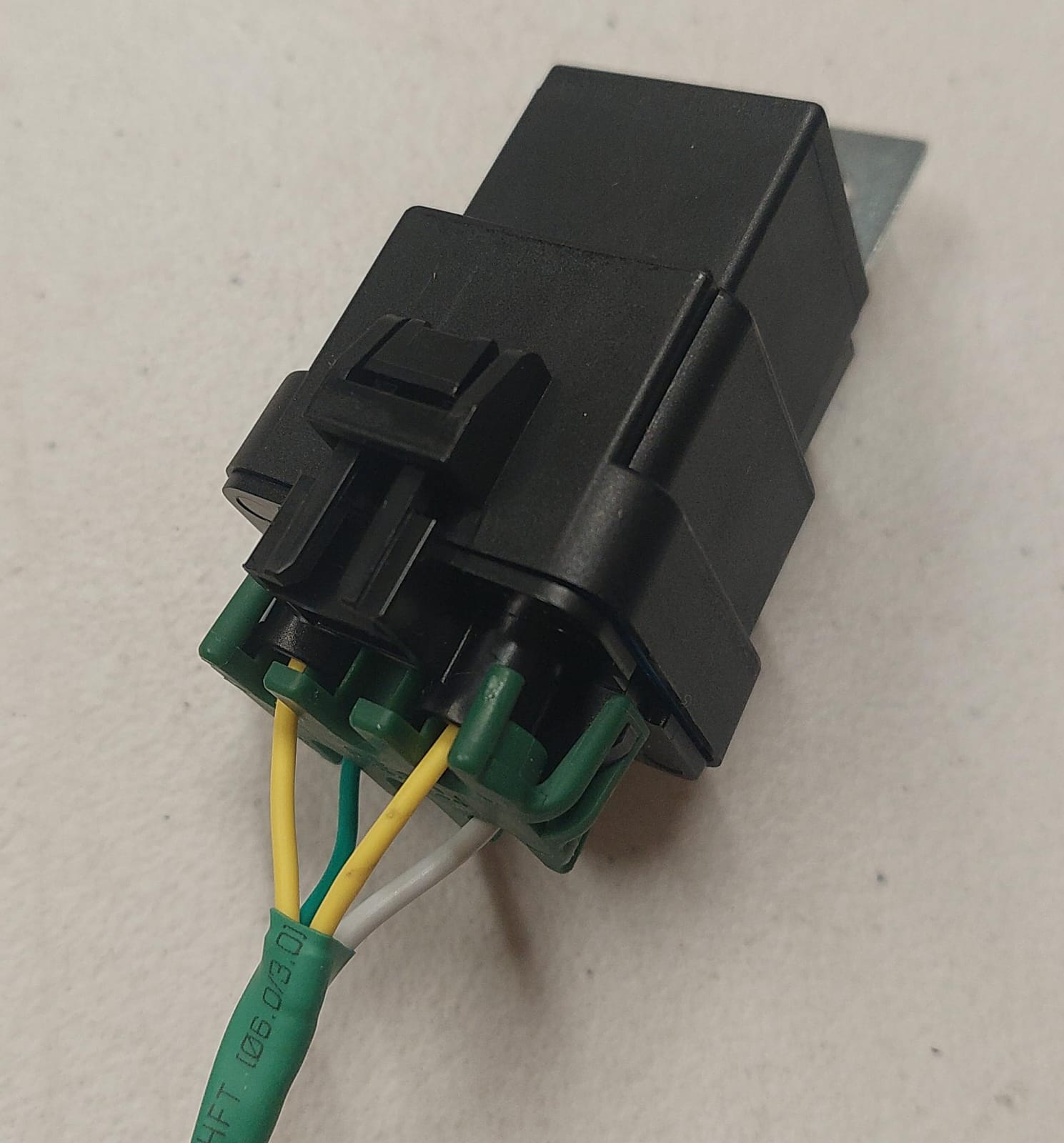

Main Relay¶

https://rusefi.com/docs/pinouts/proteus/?connector=black35&pin=10

Fuel Pump Relay¶

https://rusefi.com/docs/pinouts/proteus/?connector=black35&pin=23

Nissan ETBs¶

Hitachi SERA576-01 60mm diameter, found on for example the 2003 Infiniti G35

https://rusefi.com/docs/pinouts/proteus/?connector=black23&pin=6

The first ETB wire has an orange mark.

Green: https://rusefi.com/docs/pinouts/proteus/?connector=white35&pin=24

Yellow: https://rusefi.com/docs/pinouts/proteus/?connector=white35&pin=14

TPS #2

Green: https://rusefi.com/docs/pinouts/proteus/?connector=white35&pin=25

Yellow: https://rusefi.com/docs/pinouts/proteus/?connector=white35&pin=15

Cam¶

Uses +12V power

Crank¶

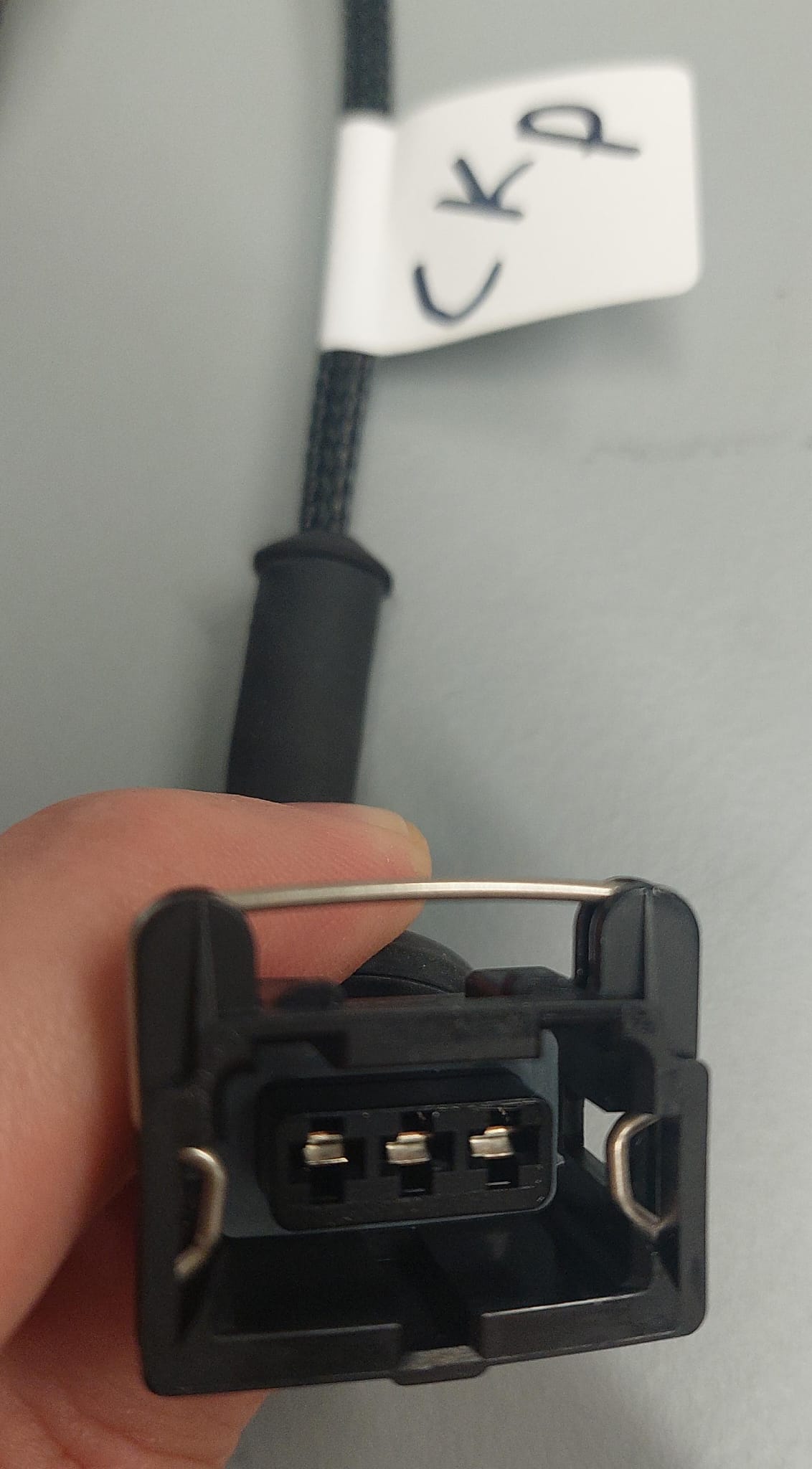

M70-style three-pin

TMAP¶

BOSCH 0261230217

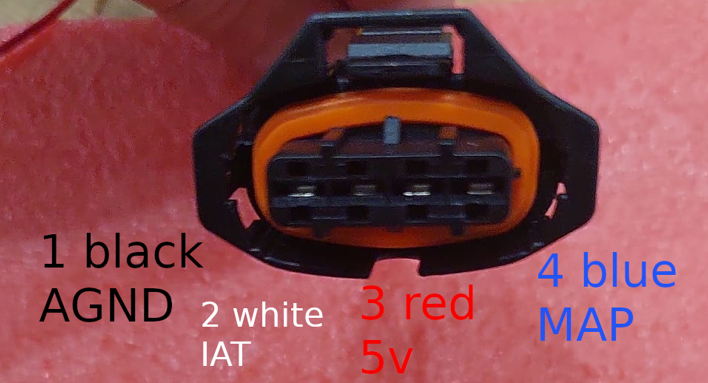

IAT white, MAP blue

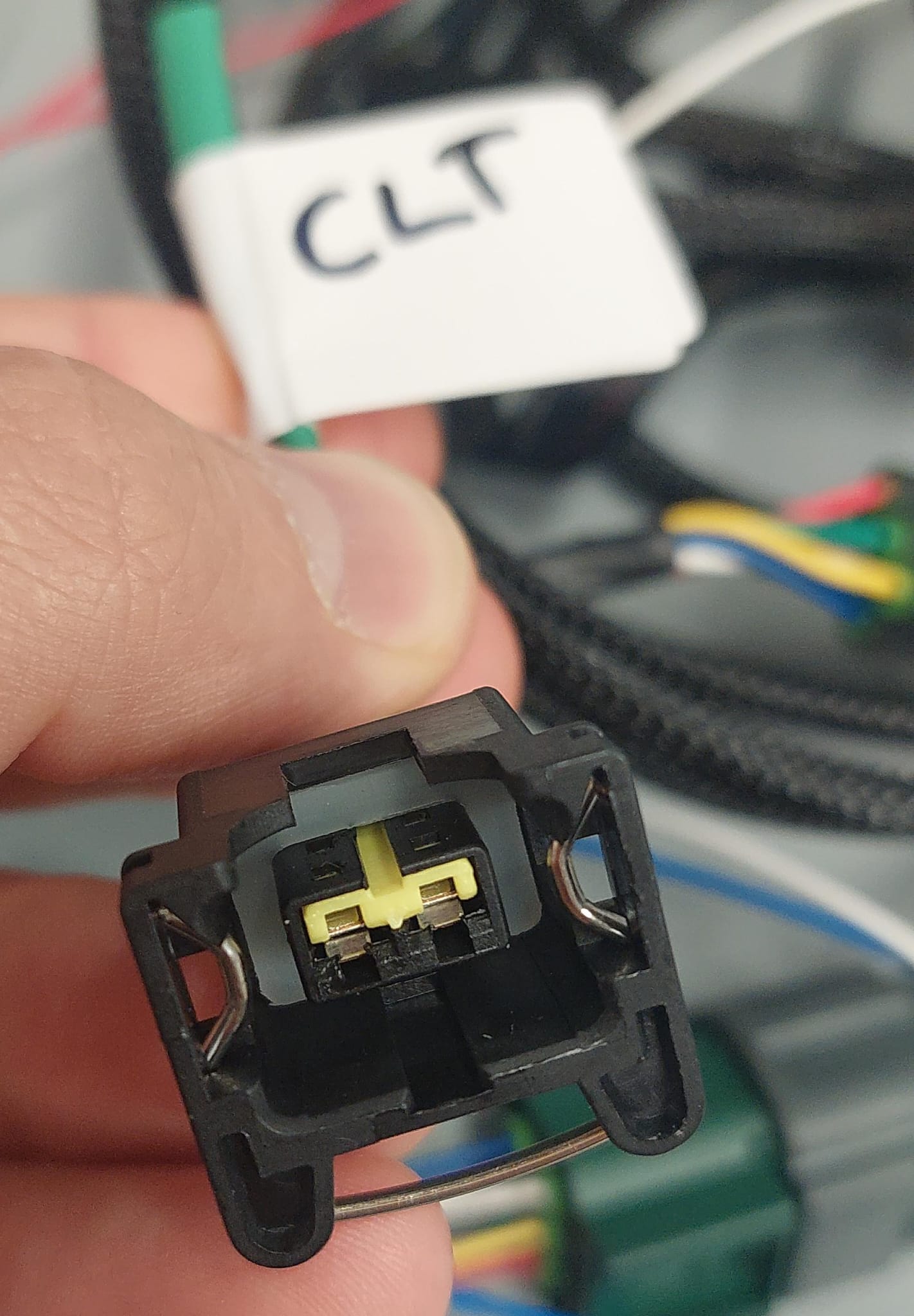

CLT¶

Fuel Pressure Sensor¶

100 psi pressure sensor: https://www.amazon.com/gp/product/B09FXDNHPG/

WBO¶

Sensor Part Numbers

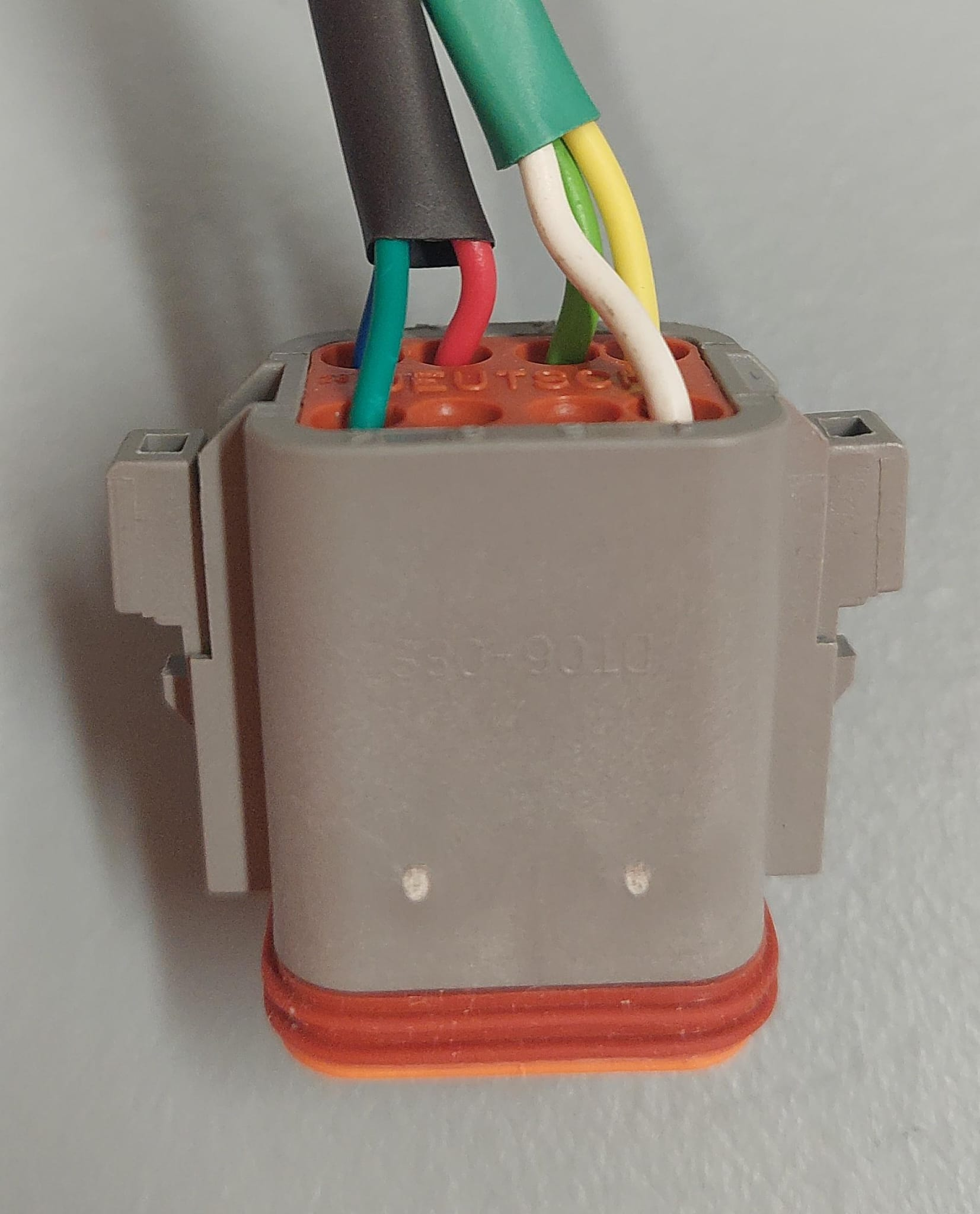

8 pin plug¶

Yellow Tachometer Output HS2

White Aux Low Side LS14

Green Fan LS15

Pedal¶

Many pedals would work if you wire them in. For one popular sensor mounted on many different Toyota and Nissan vehicles see Nissan Pedal

Integration¶

Green: Fan Relay

White: auxiliary low side

Yellow: tachometer
