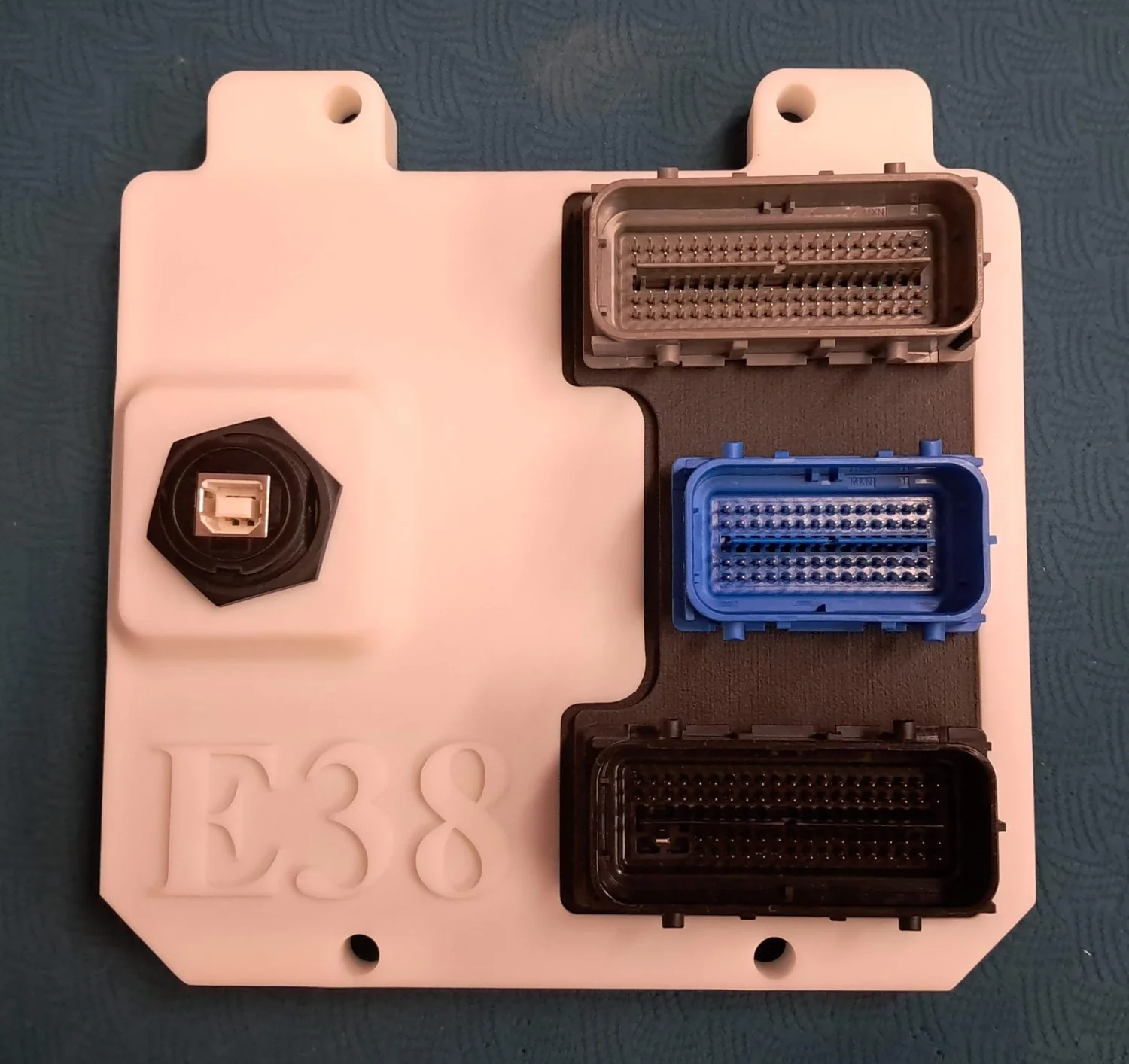

GM E38¶
A standalone compatible with GM E38 pinout 💲available at the rusEFI store💲
Information¶
https://github.com/rusefi/e38-e67-customer-support
🔴Community support ONLY 🔴 https://www.facebook.com/groups/rusEfi 🔴 Discord🔴
Specs¶
- The blue connector is auxiliary
- Dual 4.9 LSU WBO controller on the aux connector
- x3 low-side aux outputs
- x3 aux analog inputs
- x2 digital inputs (flex or buttons)
- Second CAN bus on aux connector
- (alpha version) direct OEM dash control without BCM
- (alpha version) direct cruise control input without BCM
- (alpha version) 6L80 integration support
Connectors¶
- 56-position housing "blue" Molex 34576-0703 0345760703
- Depinning tool GM-38125-213 0.64mm DIA Pick Tool SIM to Molex 63813-1400
FAQ¶
Q: The 3 connector ECU is E67, right?
A: The black and grey connectors hook to the e38 harness. The blue connector is auxiliary, with WBO and second CANbus, etc.
