2003 Dodge Neon¶

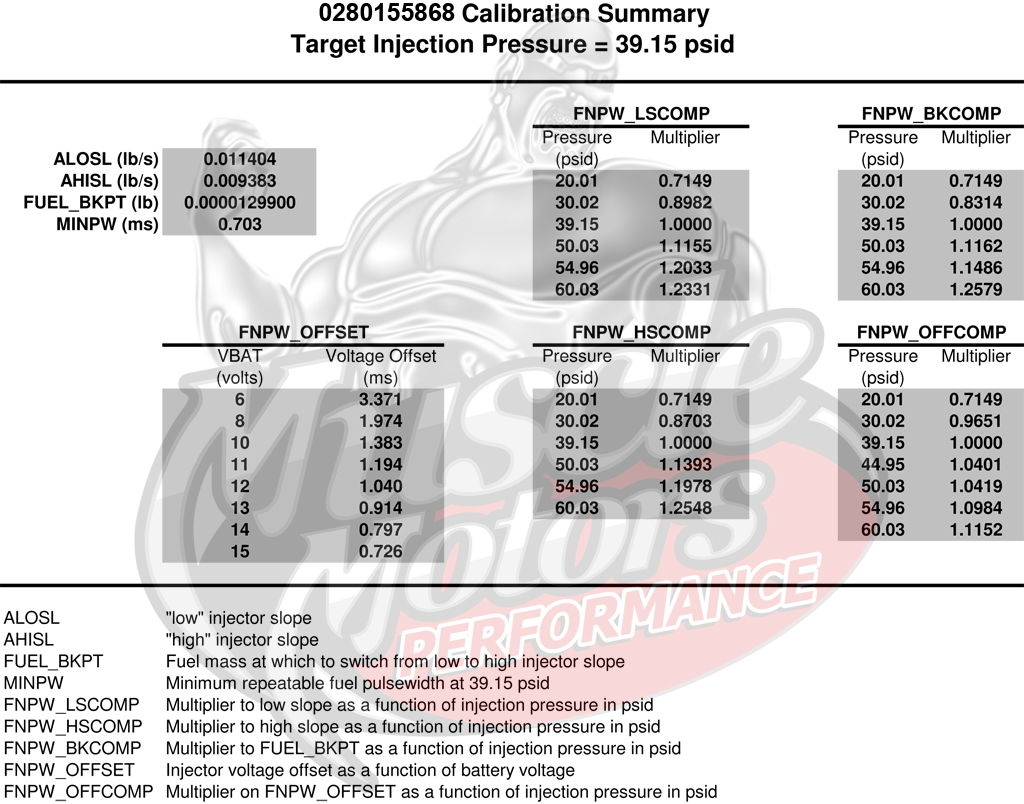

Bosch 0280-155-976 injectors

NGC Chrysler ECU¶

152 pin connector (x4 38 pin)

38 pin

Plug color: black

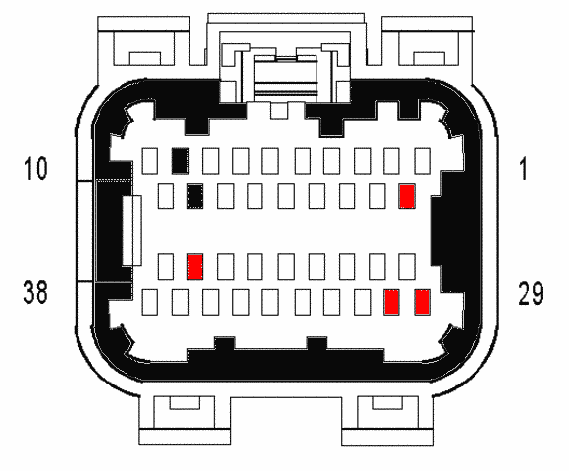

Plug 1 Pinout

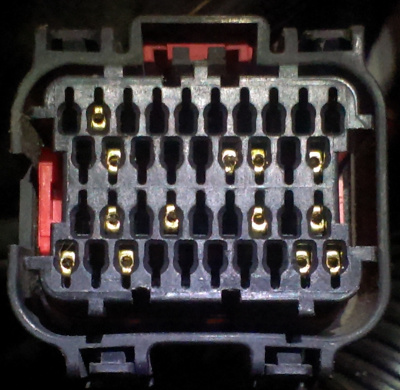

Plug 1 Photo

38 pin

Plug color: orange

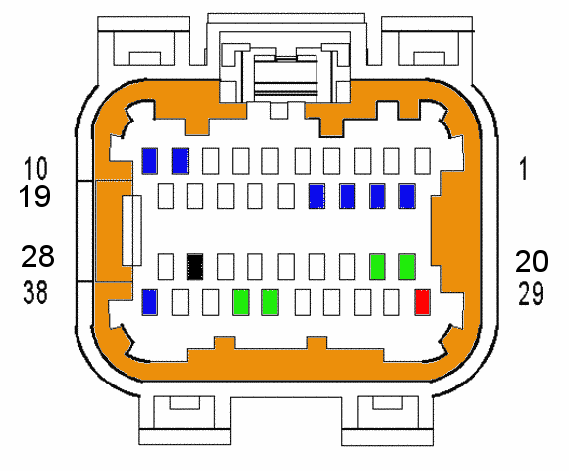

Plug 2 Pinout

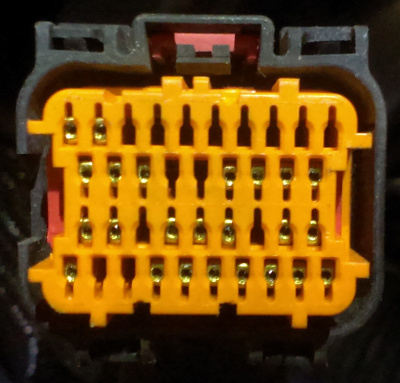

Plug 2 Photo

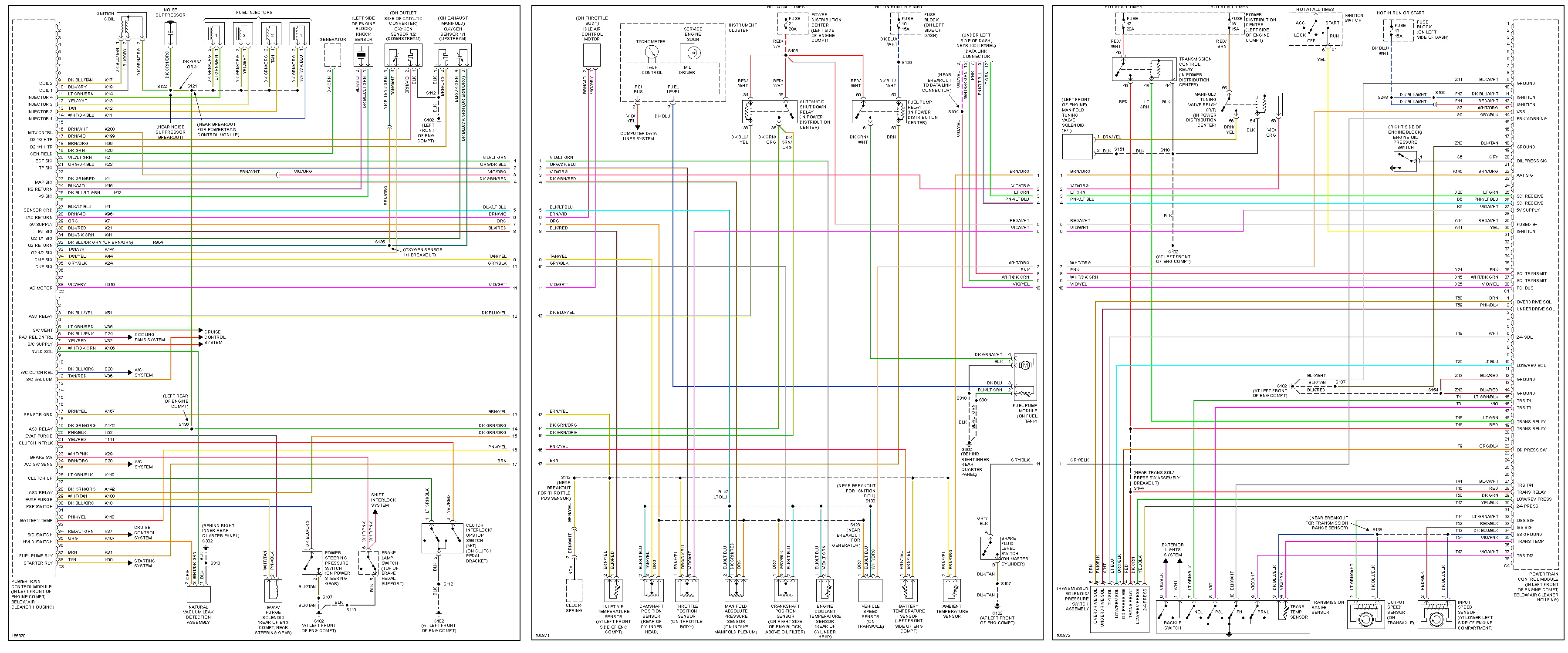

pos	b pos	color	desc	type
1	*	*	Not Used	*
2
3
4
5
6
7
8
9	red	DarK BlIe/TAN	Coil #2	Ouput
10	orange		Coil #1
11	white		Injector #4
12	orange		Injector #3
13	green		Injector #2
14	blue		Injector #1
15
16			Manifold Tuning Valve	Output
17			O2 Heater
18			O2 Heater

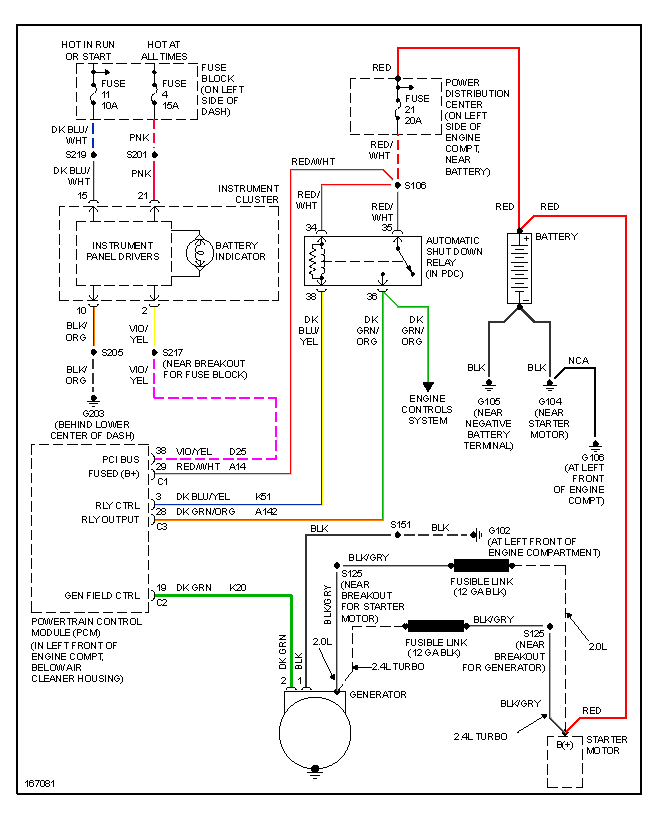

19	white		Generator/Alternator Field	Output, high-side (?)
20	green		ECT Signal	Analog Input
21	blue		Throttle Position Signal TPS	Analog Input
22			Not Used
23	white		MAP signal	Input, analog
24	black		knock sensor return	Ground
25	green		knock sensor signal
26			Not Used
27			Sensor Ground (CKP, CMP, MAP, CLT, VSS)	Ground
28	orange		Idle Air Control solenoid return	Output, low side
29	orange		5V supply	Output 5v
30	blue		Intake Air Temperature Signal IAT	Input
31			O2 1/1 signal	input
32			O2 return	Ground
33			O2 1/2 signal	input
34	green		Camshaft Signal (CMP) Hall-Effect	Input
35	blue		Crankshaft Signal (CKP) Hall-Effect	Input
36			Not Used
37			Not Used
38	green		Idle Air Control solenoid	+12 supply

38 pin

White

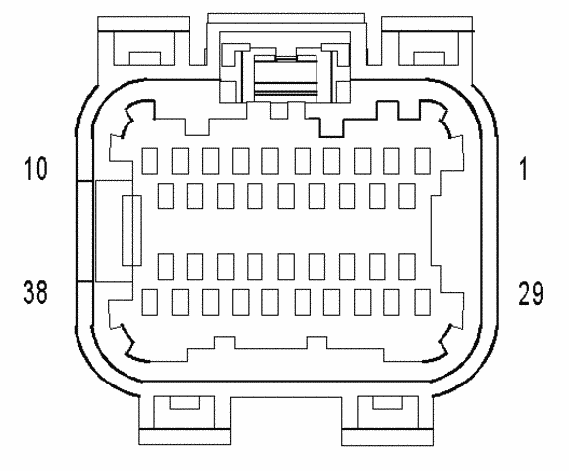

Plug 3 Pinout

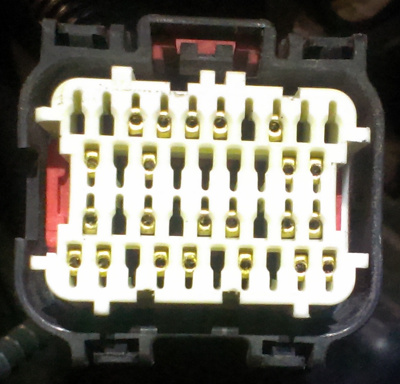

Plug 3 Photo

pos	b pos	desc	type
1
2
3	white	Automatic Shut Down Relay (main relay?)	Output, low-side
4
5

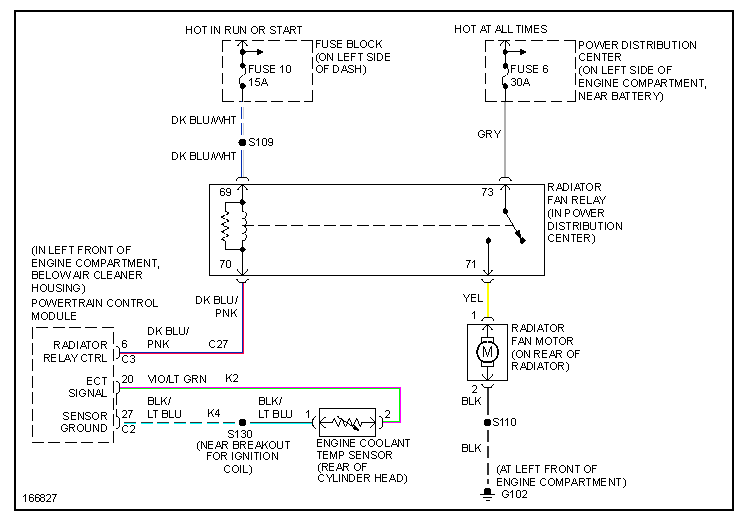

6	green	Radiator Fan relay	Output, low side
7
8
9
10

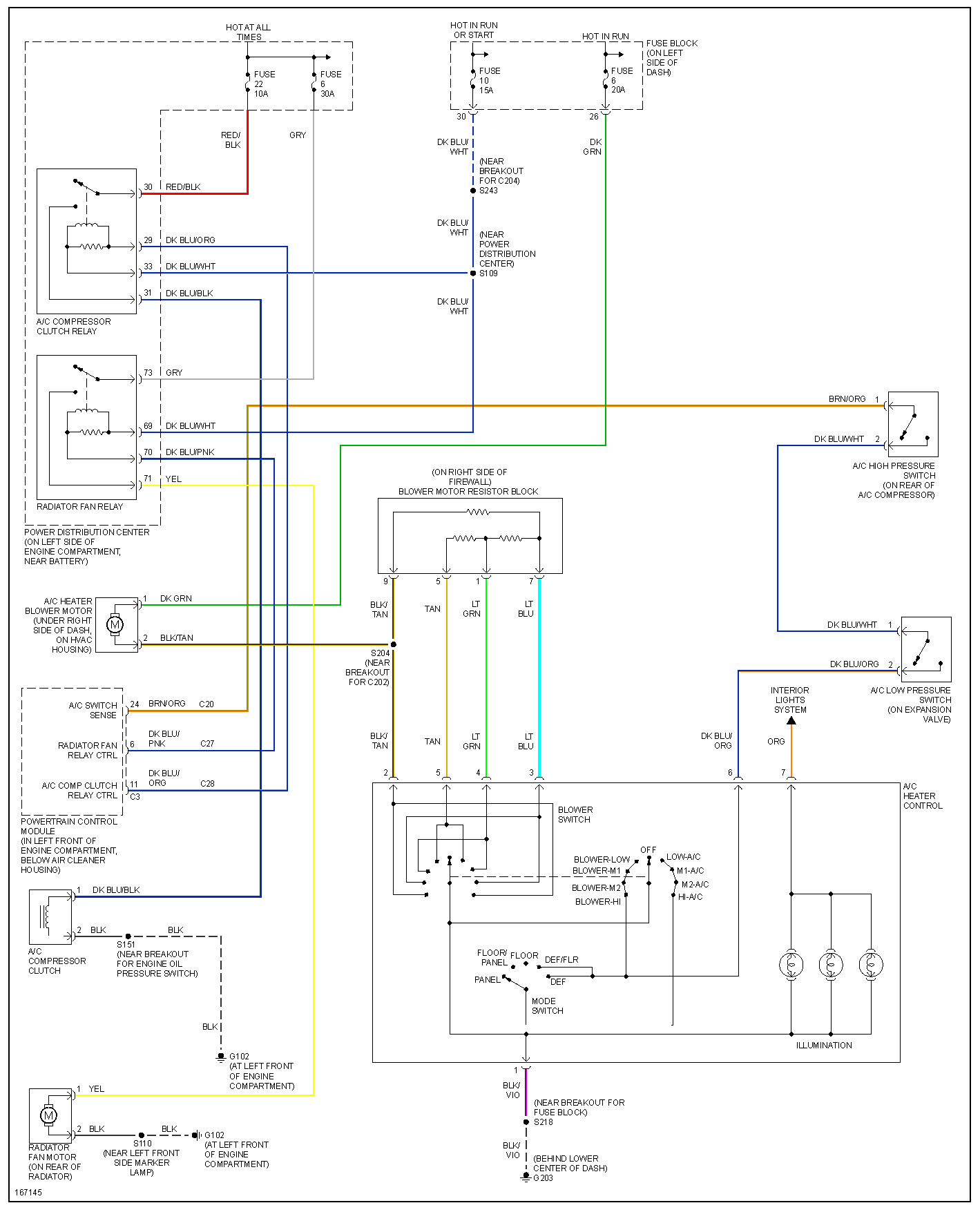

11		A/C clutch rel
12
13
14
15
16
17	black	Sensor Ground (TPS IAT)	Ground
18
19		ASD power	Input, +12v
20
21	orange	Clutch interlock/Down
22
23
24		A/C SW SENS
25
26	blue	Clutch Up signal
27
28		ASD power	Input, 12v
29
30
31
32
33
34
35
36
37	white	Fuel Pump Relay	Output, low side

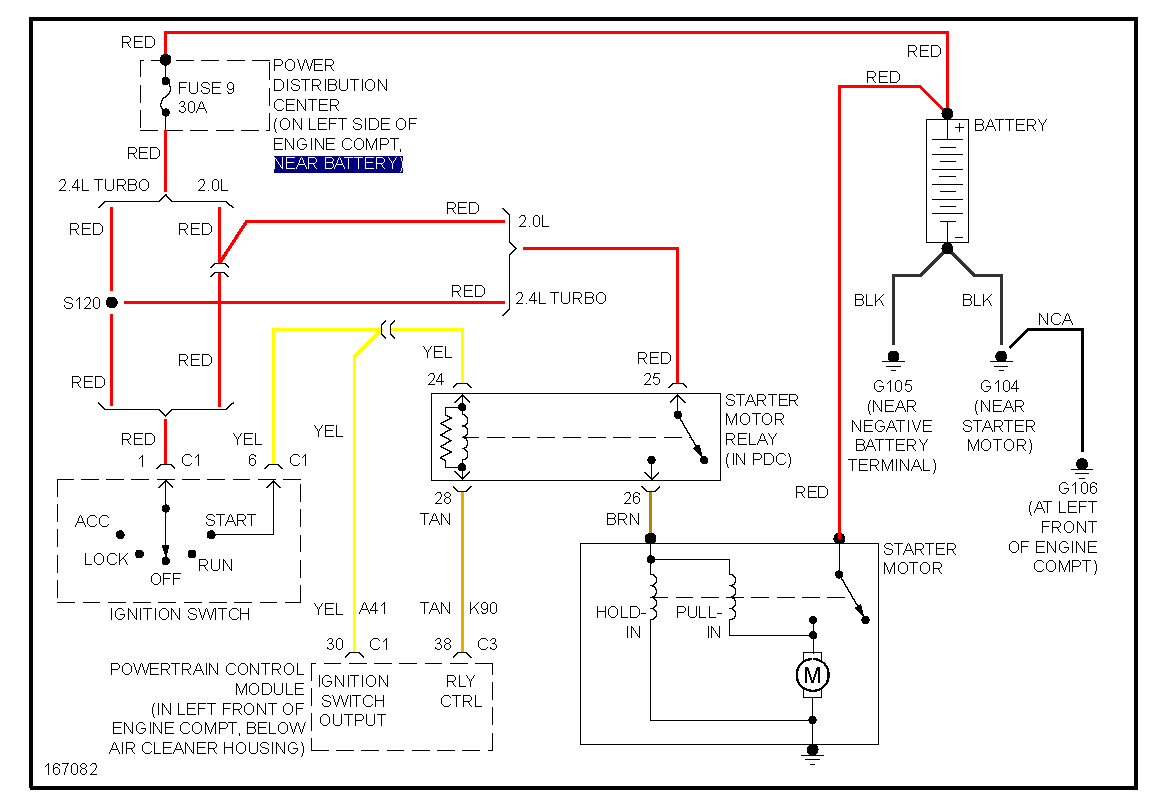

38		Starter Relay	Output, low side
