AlphaX 2Chan¶

AlphaX

Download release firmware

Snapshot firmware bundle

Pinout

iBom rev F iBom rev E iBom rev DiBom rev CiBom rev B

Issue tracker & hardware files

On-board MPXH6400A

See also AlphaX-4chan

Q: How many injectors per channel?¶

A: VND14NV04TR-E 93mJ 18A. In terms of current and switching energy those could handle many injectors per channel, maybe a dozen?

Changelog¶

rev G¶

• MAX9924 for VR

rev F¶

• MAP sensor moved to safer location
• auxiliary 10 pin molex

rev E¶

December 2022

• migrated to Hellen MegaModule 0.1

rev D¶

September 2022

• crank/cam test pads https://github.com/rusefi/alphax-2chan/issues/63
• TSOP-10 TLS115 https://github.com/rusefi/alphax-2chan/issues/64

rev C¶

• pull-down fixed https://github.com/rusefi/alphax-2chan/issues/40
• affected by BOM issue p-channel mosfet https://github.com/rusefi/alphax-2chan/issues/53

rev B¶

• affected by BOM issue p-channel mosfet https://github.com/rusefi/alphax-2chan/issues/53
• BT fixed bluetooth_jdy 115200 alphax 1234

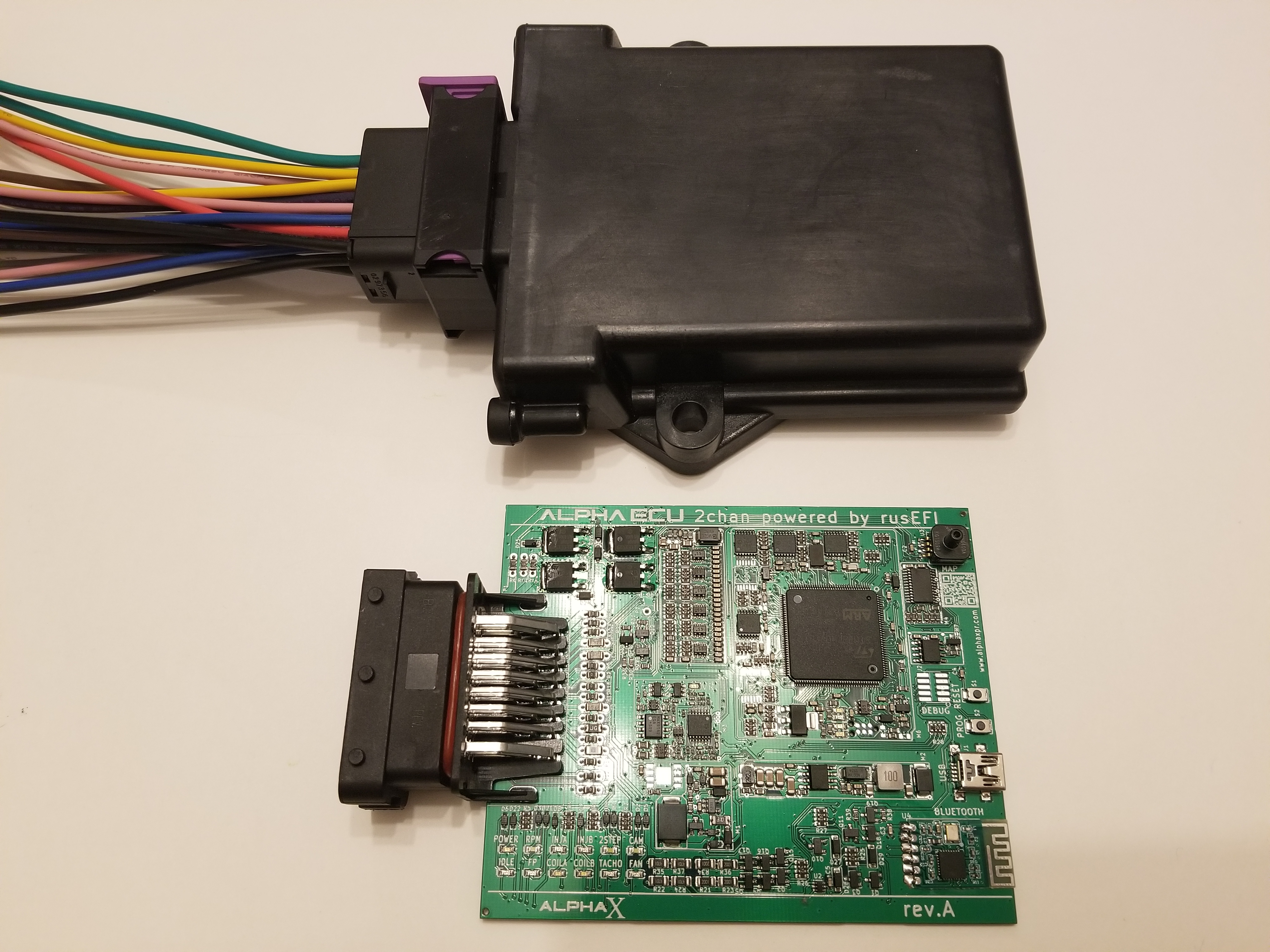

rev A¶

• affected by BOM issue p-channel mosfet https://github.com/rusefi/alphax-2chan/issues/53
