Mitsubishi 3000GT¶

Engine Control Module (ECM) Terminal Voltage Inspection Mitsubishi 3000GT & Dodge Stealth

Pinout Spreadsheet

1994¶

DOHC Non-turbo California: 1994 to 1997

DOHC Non-turbo Federal: 1996 to 1997

DOHC Turbo: 1994 to 1997

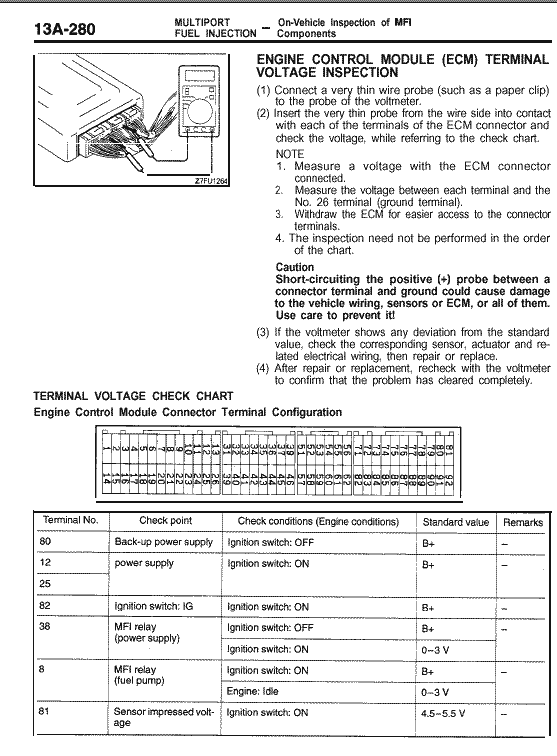

94-1¶

94-2¶

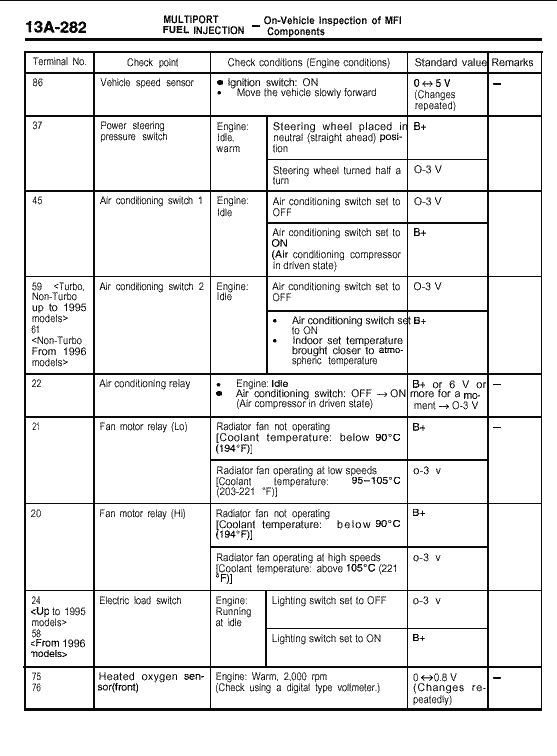

94-3¶

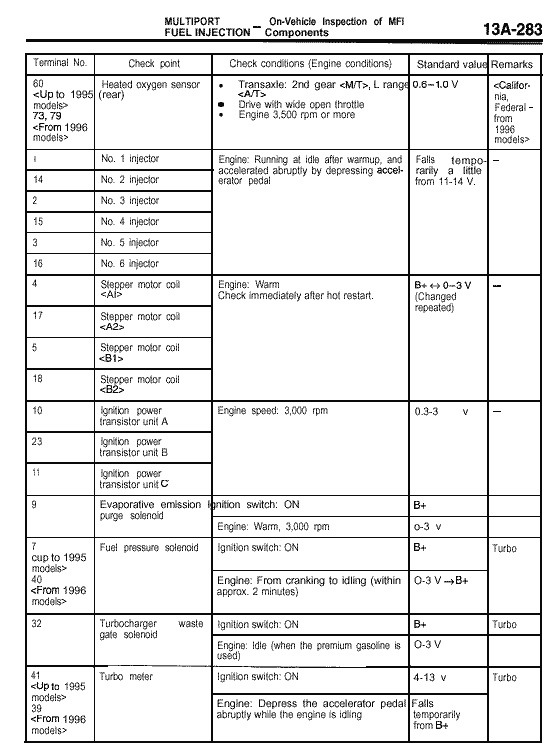

94-4¶

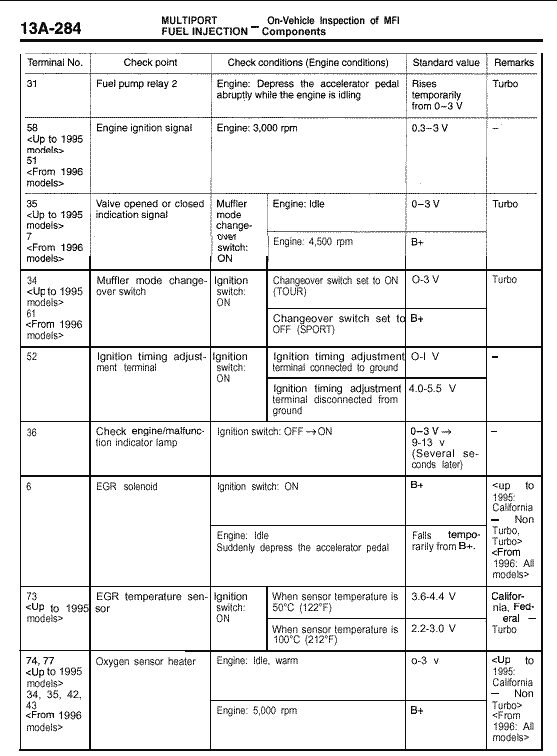

94-5¶

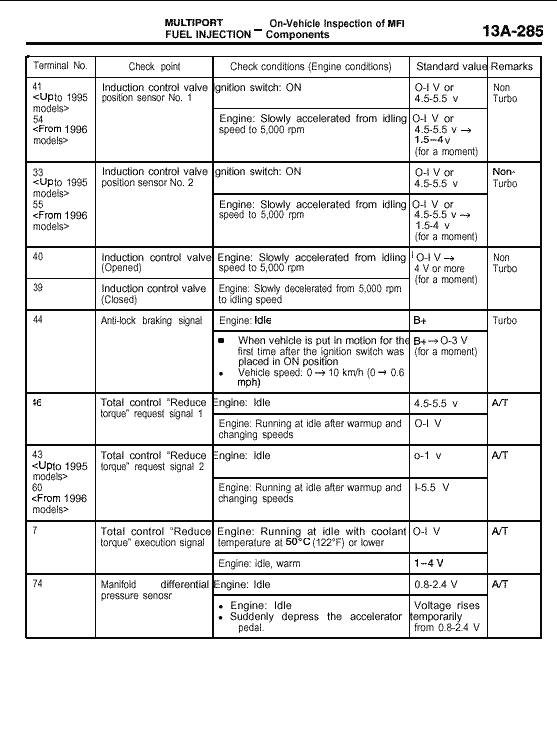

94-6¶

1996-1997¶

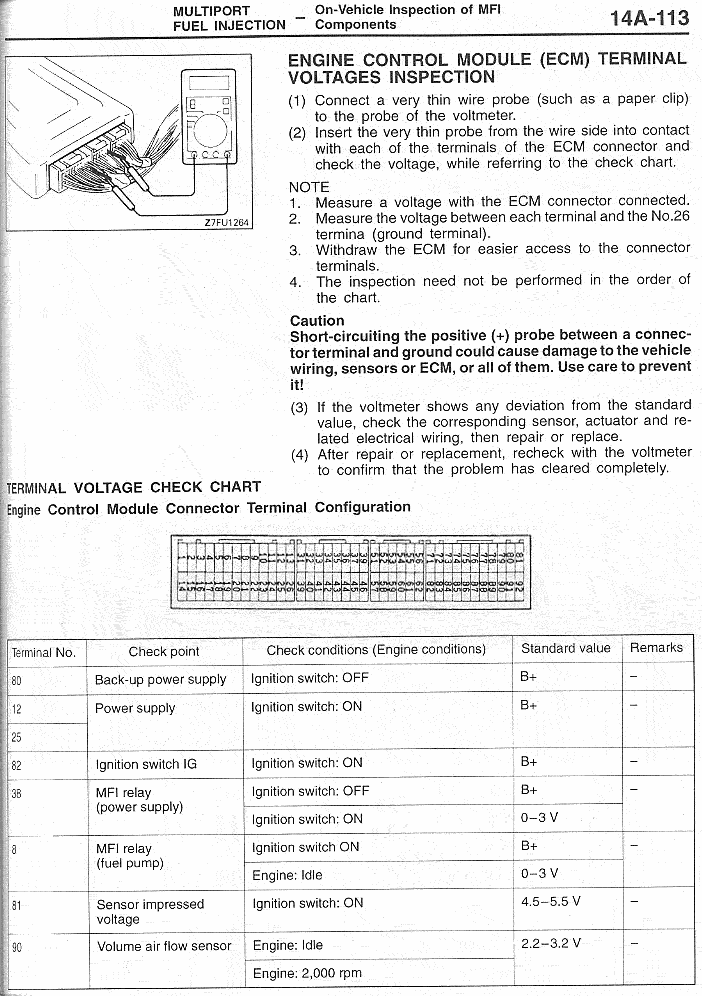

96-1¶

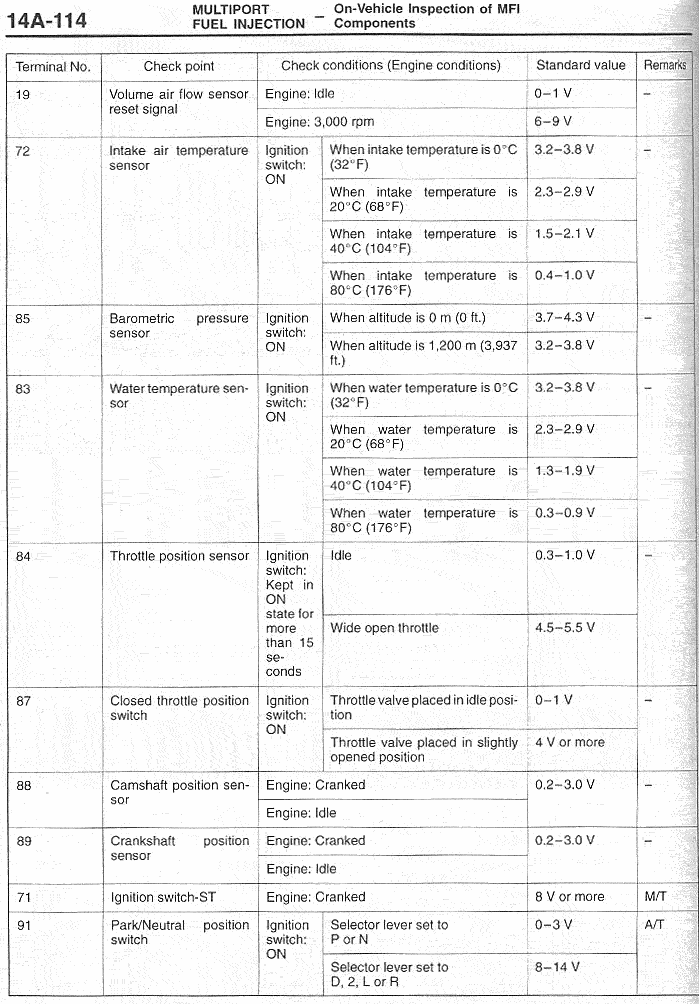

96-2¶

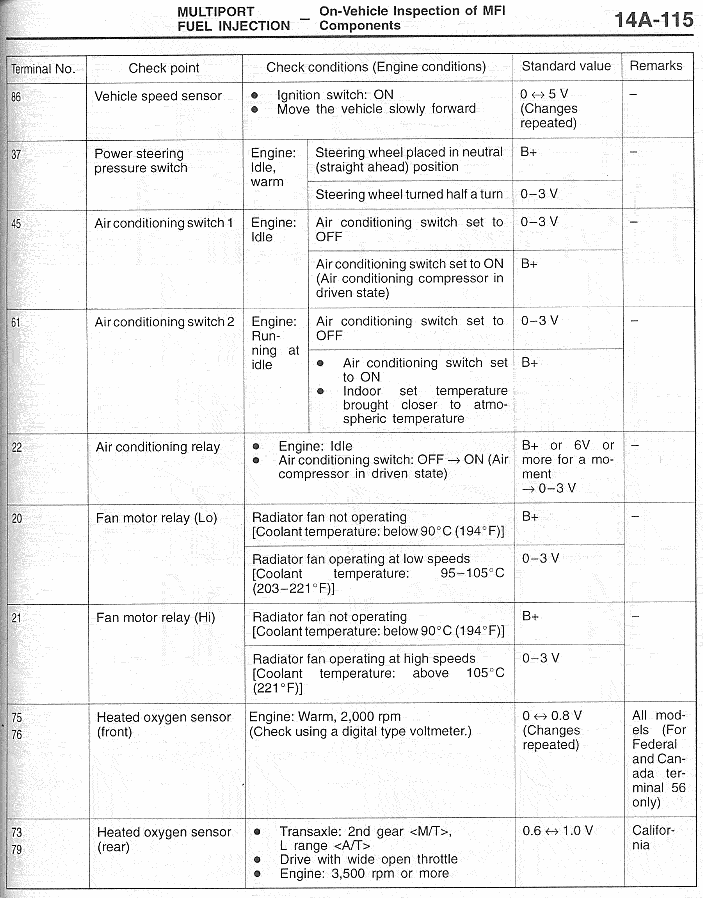

96-3¶

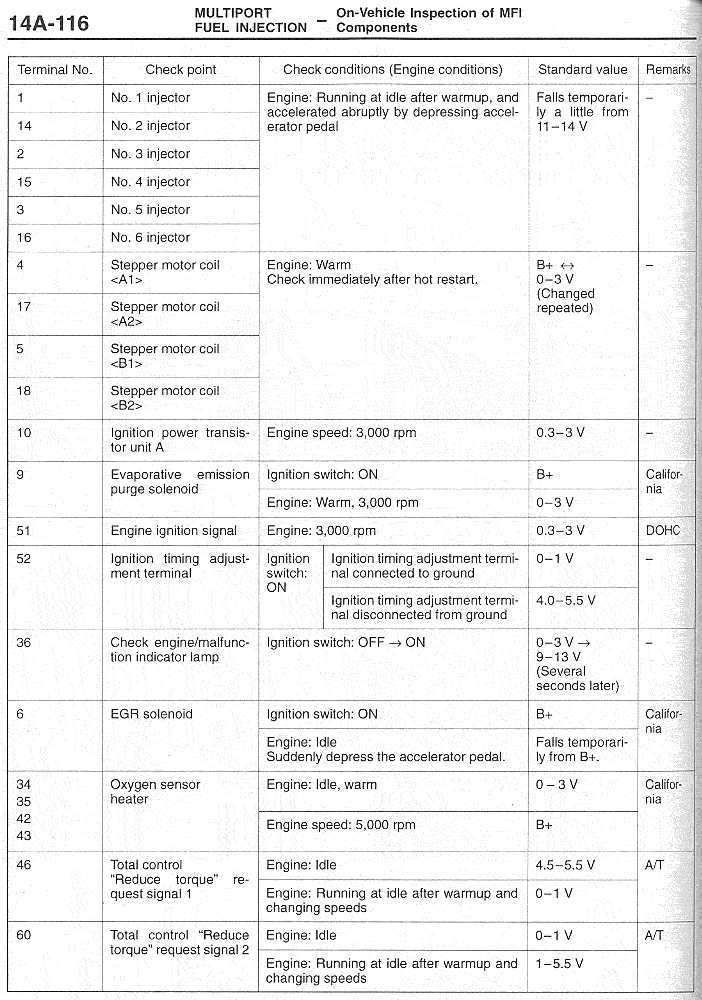

96-4¶

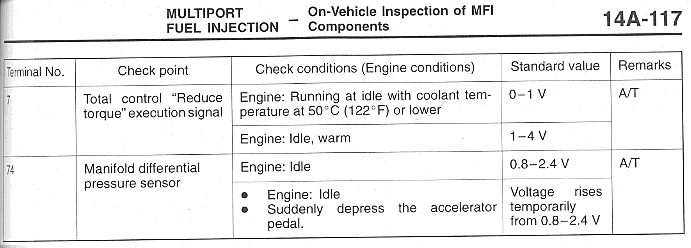

96-5¶
