Knock Sensing

TL,DR: We have native knock processing, with Proteus and Hellen hardware support at the moment. We have very limited amount of testing on real vehicles: we know that knock is being detected, we know timing is being retarded, we do not have the body of best practices yet. See bits and pieces on the forum!

Reference tune https://rusefi.com/online/view.php?msq=1626 reference tune https://rusefi.com/online/view.php?log=1359

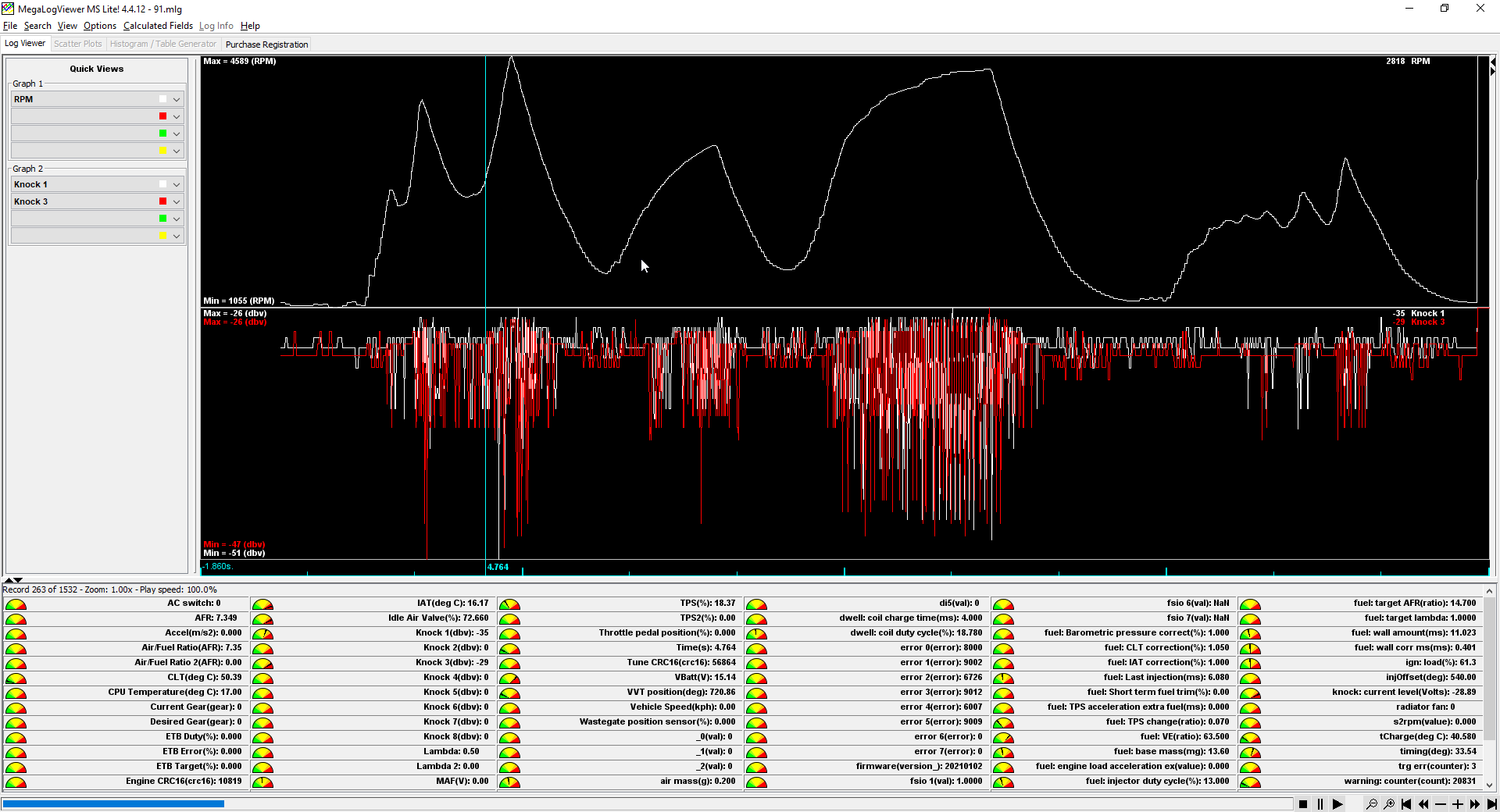

Software knock sensing

x

Youtube rusEFI: knock on standing Miata, Proteus

Youtube rusEFI: Hellen knock gauge

ASIC solution

We have some progress integrating with conventional knock sensors but it's not ready for end users. We use TPIC/HIP9011 IC for knock sensor integration but no conclusive data.

We believe that we have hip9011 hardware yet nobody has ever actually detected knock with a hip9011, someone would have to figure our calibration approach and test the overall implementation.

Frankenso has hip9011 on-board

TODO AndreiKA?

TODO MattK

Frequency is calculated based on bore, Freq = (900 / (PIF * (bore) / 2))

We also have some results with ion sensing but it's not ready for end users

rusEFI ion sensing
