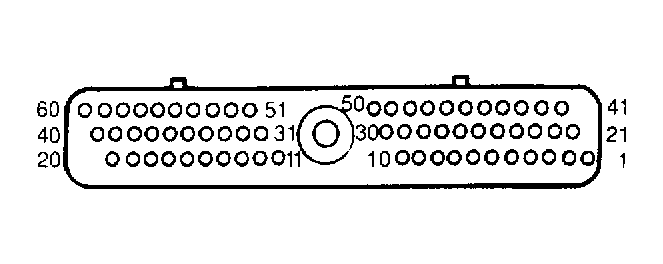

| 1 |
YEL |
+12V Hot all times |
| 2 |
|
|
| 3 |
GRY-BLK |
VSS+ |
| 4 |
TAN-YEL |
Tach signal |
| 5 |
|
|
| 6 |
PNK-ORG |
VSS- |
| 7 |
LT GRN-RED |
coolant temp signal |
| 8 |
|
|
| 9 |
TAN-LT BLU |
Signal Ground |
| 10 |
BLK-YEL |
AC Clutch Signal |
| 11 |
|
|
| 12 |
BRN-YEL |
Injector 3 |
| 13 |
BRN-LT BLU |
Injector 4 |
| 14 |
TAN-BLK |
Injector 5 |
| 15 |
LT GRN-ORG |
Injector 6 |
| 16 |
ORG-RED |
TFI Signal Ground |
| 17 |
PNK-LT GRN |
Check Engine Light |
| 18 |
|
|
| 19 |
DK GRN-YEL |
Fuel Pump Monitor |
| 20 |
BLK |
Case Ground |
| 21 |
WHT-LT BLU |
Idle Air Bypass |
| 22 |
LT BLU-ORG |
Fuel Pump Relay Signal |
| 23 |
|
|
| 24 |
|
|
| 25 |
GRY |
Air Charge Temp Sensor |
| 26 |
BRN-WHT |
5V Reference |
| 27 |
BRN-LT GRN |
EGR Signal |
| 28 |
|
|
| 29 |
GRY-LT BLU |
Right O2 Sensor Signal |
| 30 |
LT BLU-YEL |
Neutral Safety Switch |
| 31 |
GRY-YEL |
Canister Purge Solenoid |
| 32 |
|
|
| 33 |
BRN-PNK |
EGR Vacuum Regulator Solenoid |
| 34 |
|
|
| 35 |
|
|
| 36 |
PNK |
SPOUT Signal |
| 37 |
RED |
+12V Hot on Run and Start |
| 38 |
WHT-YEL |
Thermactor Air Bypass Solenoid |
| 39 |
|
|
| 40 |
BLK-WHT |
GND Ground |
| 41 |
|
|
| 42 |
TAN-ORG |
Injector 7 |
| 43 |
|
|
| 44 |
|
|
| 45 |
LT GRN-BLK |
Baro Sensor Signal |
| 46 |
GRY-RED |
5V Sensor GND |
| 47 |
GRY-WHT |
TPS Signal |
| 48 |
|
|
| 49 |
ORG |
O2 Sensor GND |
| 50 |
|
|
| 51 |
|
|
| 52 |
LT BLU |
Injector 8 |
| 53 |
|
|
| 54 |
BLK-YEL |
WOT Cutout Relay |
| 55 |
|
|
| 56 |
GRY-ORG |
PIP Signal |
| 57 |
RED |
+12V Hot on Run and Start |
| 58 |
TAN |
Injector 1 |
| 59 |
WHT |
Injector 2 |
| 60 |
BLK-WHT |
GND Ground |
